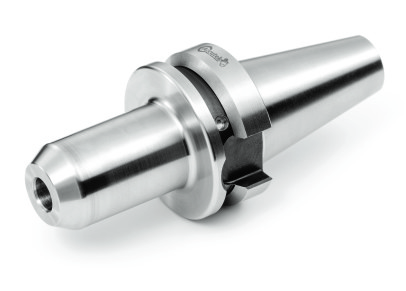

BT End Mill Holders



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Bore tolerance: H6

Catalog Number Description "D" "L" "C" "G" "H1" "H2" Coolant Style
BT30 84100612 BT30-EMH 6-60 6 60 25 M6x1 18 - AD Thru
BT30 84100812 BT30-EMH 8-60 8 60 28 M8x1.25 18 - AD Thru
BT30 84101012 BT30-EMH 10-60 10 60 35 M10x1.5 20 - AD Thru
BT30 84101212 BT30-EMH 12-60 12 60 42 M12x1.75 22.5 - AD Thru
BT30 84101612 BT30-EMH 16-60 16 60 48 M14x2 24 - AD Thru
BT30 84102012 BT30-EMH 20-60 20 60 52 M16x2 25 - AD Thru
BT40 84120615 BT40-EMH 6-75 6 75 25 M6x1 18 - AD Thru
BT40 84120815 BT40-EMH 8-75 8 75 28 M8x1.25 18 - AD Thru
BT40 84121015 BT40-EMH 10-75 10 75 35 M10x1.5 20 - AD Thru
BT40 84121216 BT40-EMH 12-75 12 75 42 M12x1.75 22.5 - AD Thru
BT40 84121615 BT40-EMH 16-75 16 75 48 M14x2 24 - AD Thru
BT40 84122016 BT40-EMH 20-75 20 75 52 M16x2 25 - AD Thru
BT40 84122518 BT40-EMH 25-90 25 90 65 M18x2* 24 25 AD Thru
BT40 84123224 BT40-EMH 32-120 32 120 72 M20x2* 24 28 AD Thru
BT40 84124024 BT40-EMH 40-120 40 120 90 M20x2 30 32 AD Thru
BT30 85101615 BT30-SLA 16-75 16 75 40 M10 x 1.5 25 - AD Thru
BT30 85102015 BT30-SLA 20-75 20 75 40 M10 x 1.5 25 20 AD Thru
BT30 85102515 BT30-SLA 25-75 25 75 46 M12 x 1.75 25 20 AD Thru
BT40 85122018 BT40-SLA 20-90 20 90 50 M10 x 1.5 25 20 AD Thru
BT40 85122518 BT40-SLA 25-90 25 90 50 M12 x 1.75 25 20 AD Thru
BT40 85123218 BT40-SLA 32-90 32 90 60 M12 x 1.75 30 20 AD Thru
BT40 85124018 BT40-SLA 40-90 40 90 60 M12 x 1.75 25 25 AD Thru
BT50 85141621 BT50-SLA 16-105 16 105 40 M10 x 1.5 25 20 AD Thru
BT50 85142021 BT50-SLA 20-105 20 105 50 M10 x 1.5 25 20 AD Thru
BT50 85142521 BT50-SLA 25-105 25 105 50 M12 x 1.75 25 20 AD Thru
BT50 85143221 BT50-SLA 32-105 32 105 60 M12 x 1.75 30 20 AD Thru
BT50 85144021 BT50-SLA 40-105 40 105 70 M16 x 2 30 20 AD Thru
BT50 85145021 BT50-SLA 50-105 50 105 80 M16 x 2 30 20 AD Thru

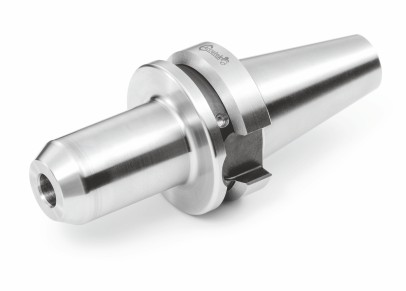

BTP Face Contact End Mill Holder (1835 E)



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Bore tolerance: H6

Catalog Number Description "D" "L" "C" "G" "H1" "H2" Coolant Style
BTP30 841060612 BTP30-EMH 6-60 6 60 25 M6x1 18 - AD Thru
BTP30 841060812 BTP30-EMH 8-60 8 60 28 M8x1.25 18 - AD Thru
BTP30 841061012 BTP30-EMH 10-60 10 60 35 M10x1.5 20 - AD Thru
BTP30 841061212 BTP30-EMH 12-60 12 60 42 M12x1.75 22.5 - AD Thru
BTP30 841061612 BTP30-EMH 16-60 16 60 48 M14x2 24 - AD Thru
BTP30 841062012 BTP30-EMH 20-60 20 60 52 M16x2 25 - AD Thru
BTP40 841080615 BTP40-EMH 6-75 6 75 25 M6x1 18 - AD Thru
BTP40 841080815 BTP40-EMH 8-75 8 75 28 M8x1.25 18 - AD Thru
BTP40 841081015 BTP40-EMH 10-75 10 75 35 M10x1.5 20 - AD Thru
BTP40 841081216 BTP40-EMH 12-75 12 75 42 M12x1.75 22.5 - AD Thru
BTP40 841081615 BTP40-EMH 16-75 16 75 48 M14x2 24 - AD Thru
BTP40 841082016 BTP40-EMH 20-75 20 75 52 M16x2 25 - AD Thru
BTP40 841082518 BTP40-EMH 25-90 25 90 65 M18x2* 24 25 AD Thru
BTP40 841083224 BTP40-EMH 32-120 32 120 72 M20x2* 24 28 AD Thru
BTP40 841084024 BTP40-EMH 40-120 40 120 90 M20x2 30 32 AD Thru

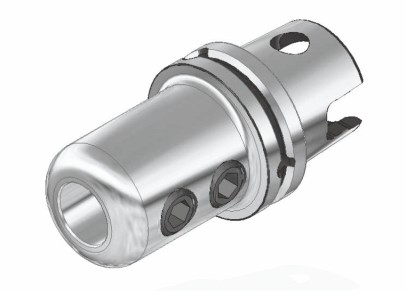

HSK End Mill Holder (DIN 6499 AND DIN 1835/B) – Metric ID



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Bore tolerance: H6

Catalog Number Description "D" "L" "C" "G" "H1" "H2" Coolant Style
HSK 63A 8474A0613 HSK63A-EMH 6-65 6 65 25 M6x1 18 - AD Thru
HSK 63A 8474A0813 HSK63A-EMH 8-65 8 65 28 M8x1.25 18 - AD Thru
HSK 63A 8474A1013 HSK63A-EMH 10-65 10 65 35 M10x1.5 20 - AD Thru
HSK 63A 8474A1216 HSK63A-EMH 12-80 12 80 42 M12x1.75 22.5 - AD Thru
HSK 63A 8474A1416 HSK63A-EMH 14-80 14 80 44 M12x1.75 22.5 - AD Thru
HSK 63A 8474A1616 HSK63A-EMH 16-80 16 80 48 M14x2 24 - AD Thru
HSK 63A 8474A1816 HSK63A-EMH 18-80 18 80 50 M14x2 24 - AD Thru
HSK 63A 8474A2016 HSK63A-EMH 20-80 20 80 52 M16x2 25 - AD Thru
HSK 63A 8474A2522 HSK63A-EMH 25-110 25 110 65 M18x2* 24 25 AD Thru
HSK 63A 8474A3222 HSK63A-EMH 32-110 32 110 72 M20x2 24 28 AD Thru
HSK 100A 8476A0618 HSK100A-EMH 6-90 6 90 25 M6x1 18 - AD Thru
HSK 100A 8476A0818 HSK100A-EMH 8-90 8 90 28 M8x1.25 18 - AD Thru
HSK 100A 8476A1018 HSK100A-EMH 10-90 10 90 35 M10x1.5 20 - AD Thru
HSK 100A 8476A1220 HSK100A-EMH 12-100 12 100 42 M12x1.75 22.5 - AD Thru
HSK 100A 8476A1420 HSK100A-EMH 14-100 14 100 44 M12x1.75 22.5 - AD Thru
HSK 100A 8476A1620 HSK100A-EMH 16-100 16 100 48 M14x2 24 - AD Thru
HSK 100A 8476A1820 HSK100A-EMH 18-100 18 100 50 M14x2 24 - AD Thru
HSK 100A 8476A2022 HSK100A-EMH 20-110 20 110 52 M16x2 25 - AD Thru
HSK 100A 8476A2524 HSK100A-EMH 25-120 25 120 65 M18x2* 24 25 AD Thru
HSK 100A 8476A3224 HSK100A-EMH 32-120 32 120 72 M20x2 24 28 AD Thru
HSK 100A 8476A3424 HSK100A-EMH 40-120 40 120 80 M20x2 30 32 AD Thru

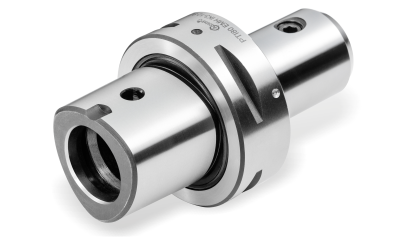

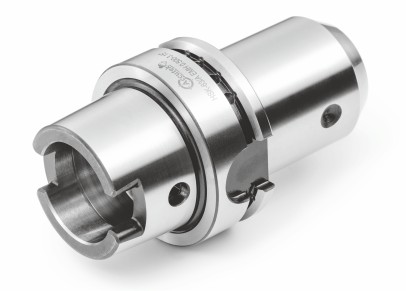

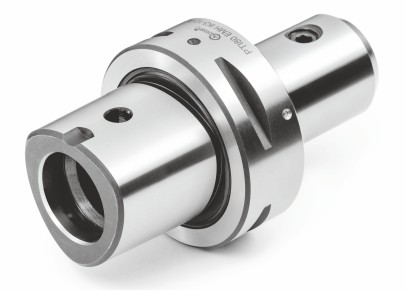

PTI End Mill Holder (ISO 26623-1)



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Bore tolerance: H6

Catalog Number Description "D" "L" "C" "G" "H1" "H2" Coolant Style
PTI 50 84680613 PTI50-EMH 6-65 6 65 25 M6x1 18 - AD Thru
PTI 50 84680813 PTI50-EMH 8-65 8 65 28 M8x1.25 18 - AD Thru
PTI 50 84681016 PTI50-EMH 10-80 10 80 35 M10x1.50 20 - AD Thru
PTI 50 84681216 PTI50-EMH 12-80 12 80 42 M12x1.75 22.5 - AD Thru
PTI 50 84681616 PTI50-EMH 16-80 16 80 48 M14x2 24 - AD Thru
PTI 50 84682017 PTI50-EMH 20-85 20 85 52 M16x2 25 - AD Thru
PTI 50 84682518 PTI50-EMH 25-90 25 90 65 M18x3 24 22 AD Thru
PTI 50 84683218 PTI50-EMH 32-90 32 90 72 M20x2 24 24 AD Thru
PTI 63 84690613 PTI63-EMH 6-65 6 65 25 M6x1 18 - AD Thru
PTI 63 84690813 PTI63-EMH 8-65 8 65 28 M8x1.25 18 - AD Thru
PTI 63 84691016 PTI63-EMH 10-80 10 80 35 M10x1.50 20 - AD Thru
PTI 63 84691216 PTI63-EMH 12-80 12 80 42 M12x1.75 22.5 - AD Thru
PTI 63 84691616 PTI63-EMH 16-80 16 80 48 M14x2 24 - AD Thru
PTI 63 84692017 PTI63-EMH 20-85 20 85 52 M16x2 25 - AD Thru
PTI 63 84692519 PTI63-EMH 25-90 25 90 65 M18x2 24 25 AD Thru
PTI 63 84393218 PTI63-EMH 32-90 32 90 72 M20x2 24 28 AD Thru
PTI 63 84694019 PTI63-EMH 40-95 40 95 80 M20x2 30 32 AD Thru

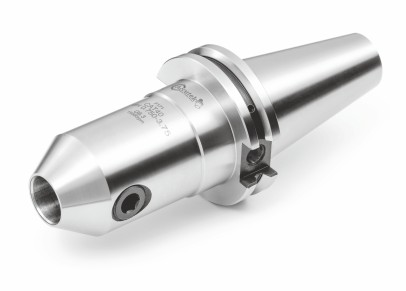

SK End Mill Holder (DIN 69871 FORM A)



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Bore tolerance: H6

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D" "L" "C" "G" "H1" "H2" Coolant Style
SK40 84190615 SK40-EMH 6-75 6 75 25 M6x1 18 - AD Thru
SK40 84190815 SK40-EMH 8-75 8 75 28 M8×1.25 18 - AD Thru
SK40 84191015 SK40-EMH 10-75 10 75 35 M10×1.5 20 - AD Thru
SK40 84191215 SK40-EMH 12-75 12 75 42 M12×1.75 22.5 - AD Thru
SK40 84191615 SK40-EMH 16-75 16 75 48 M14×2 24 - AD Thru
SK40 84191313 SK40-EMH 20-75 20 75 52 M16×2 25 - AD Thru
SK40 84192518 SK40-EMH 25-90 25 90 65 M18×2 24 25 AD Thru
SK40 84193224 SK40-EMH 32-120 32 120 72 M20×2.5 24 28 AD Thru
SK50 84211218 SK50-EMH 12-90 12 90 42 M12×1.75 22.5 - AD Thru
SK50 84211618 SK50-EMH 16-90 16 90 48 M14×2 24 - AD Thru
SK50 84212018 SK50-EMH 20-90 20 90 52 M16×2 25 - AD Thru
SK50 84212521 SK50-EMH 25-105 25 105 65 M18×2 24 25 AD Thru
SK50 84213224 SK50-EMH 32-120 32 120 72 M20×2 24 28 AD Thru
SK50 84214024 SK50-EMH 40-120 40 120 90 M20×2 30 32 AD Thru
SK30 85181615 SK30-SLA 16-75 16 75 40 M10 x 1.5 25 - AD Thru
SK30 85182015 SK30-SLA 20-75 20 75 40 M10 x 1.5 25 20 AD Thru
SK30 85182515 SK30-SLA 25-75 25 75 46 M12 x 1.75 25 20 AD Thru
SK40 85192018 SK40-SLA 20-90 20 90 50 M10 x 1.5 25 20 AD Thru
SK40 85192518 SK40-SLA 25-90 25 90 50 M12 x 1.75 25 20 AD Thru
SK40 85193218 SK40-SLA 32-90 32 90 60 M12 x 1.75 30 20 AD Thru
SK40 85194018 SK40-SLA 40-90 40 90 60 M12 x 1.75 25 25 AD Thru
SK50 85211621 SK50-SLA 16-105 16 105 40 M10 x 1.5 25 20 AD Thru
SK50 85212021 SK50-SLA 20-105 20 105 50 M10 x 1.5 25 20 AD Thru
SK50 85212521 SK50-SLA 25-105 25 105 50 M12 x 1.75 25 20 AD Thru
SK50 85213221 SK50-SLA 32-105 32 105 60 M12 x 1.75 30 20 AD Thru
SK50 85214021 SK50-SLA 40-105 40 105 70 M16 x 2 30 20 AD Thru
SK50 85215021 SK50-SLA 50-105 50 105 80 M16 x 2 30 20 AD Thru

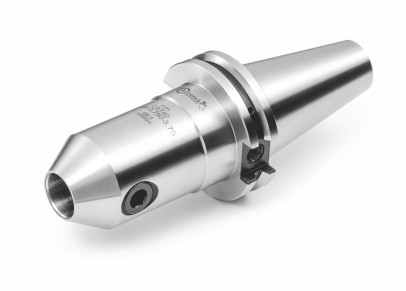

SKP Face Contact End Mill Holder



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Bore tolerance: H6

Catalog Number Description "D" "L" "C" "G" "H1" "H2" Coolant Style
SKP40 841260615 SKP40-EMH 6-75 6 75 25 M6x1 18 - AD Thru
SKP40 841260815 SKP40-EMH 8-75 8 75 28 M8×1.25 18 - AD Thru
SKP40 841261015 SKP40-EMH 10-75 10 75 35 M10×1.5 20 - AD Thru
SKP40 841261215 SKP40-EMH 12-75 12 75 42 M12×1.75 22.5 - AD Thru
SKP40 841261615 SKP40-EMH 16-75 16 75 48 M14×2 24 - AD Thru
SKP40 841262013 SKP40-EMH 20-75 20 75 52 M16×2 25 - AD Thru
SKP40 841262518 SKP40-EMH 25-90 25 90 65 M18×2 24 25 AD Thru
SKP40 841263224 SKP40-EMH 32-120 32 120 72 M20×2.5 24 28 AD Thru
SKP50 841281218 SKP50-EMH 12-90 12 90 42 M12×1.75 22.5 - AD Thru
SKP50 841281618 SKP50-EMH 16-90 16 90 48 M14×2 24 - AD Thru
SKP50 841282018 SKP50-EMH 20-90 20 90 52 M16×2 25 - AD Thru
SKP50 841282521 SKP50-EMH 25-105 25 105 65 M18×2 24 25 AD Thru
SKP50 841283224 SKP50-EMH 32-120 32 120 72 M20×2 24 28 AD Thru
SKP50 841284024 SKP50-EMH 40-120 40 120 90 M20×2 30 32 AD Thru

KTI End Mill Holder



Catalog Number Description D C L G H1 H2 Coolant Style
KTI63 841501012 KTI63XMZ-EMH 10-60 10 35 60 M10X1.5 20 - AD Thru
KTI63 841501212 KTI63XMZ-EMH 12-60 12 42 60 M12X1.75 22.5 - AD Thru
KTI63 841501612 KTI63XMZ-EMH 16-60 16 48 60 M14X2 24 - AD Thru
KTI63 841502012 KTI63XMZ-EMH 20-60 20 52 60 M16X2 25 - AD Thru
KTI63 841502512 KTI63XMZ-EMH 25-85 25 65 85 M18x2 24 25 AD Thru
KTI63 841503217 KTI63XMZ-EMH 32-85 32 72 85 M20x2 24 28 AD Thru
