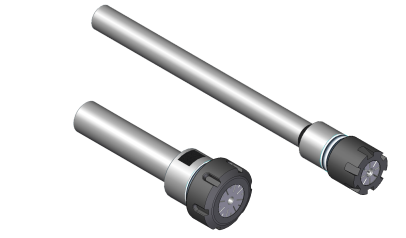

• STRAIGHT SHANK ER COLLET HOLDER

HOME >> CNC Tool Holders >> STRAIGHT SHANK ER COLLET HOLDER

SSH-CHE - NO FLAT ON SHANK



catelog_number Description Machine Brand Er Collet Stop Screw "J" ØD1 Shank "L" Proj "L1" ØD Flat On Shank
SSH-CHE 87241014 SSH-.500-CHE 11-2.75 Various ER11 M6x1 0.500 2.75 1.12 0.748 N
SSH-CHE 87241028 SSH-.500-CHE 11-5.50 Various ER11 M6X1 0.500 5.50 1.12 0.748 N
SSH-CHE 87241120 SSH-.500-CHE 16-4.00 Various ER16 M6X1 0.500 4.00 1.50 1.102 N
SSH-CHE 87241220 SSH-.500-CHE 20-4.00 Various ER20 M6X1 0.500 4.00 1.75 1.338 N
SSH-CHE 87242112 SSH-.625-CHE 16-2.36 Various ER16 5/16-24LH 0.625 2.36 1.44 1.102 N
SSH-CHE 87242220 SSH-.625-CHE 20-4.00 Tornos ER20 5/16-24LH 0.625 4.00 1.75 1.338 N
SSH-CHE 87245110 SSH-.750-CHE 16-2.00 Citizen ER16 7/16-16LH 0.750 2.00 1.25 1.102 N
SSH-CHE 87245120 SSH-.750-CHE 16-4.00 Citizen ER16 7/16-16LH 0.750 4.00 1.25 1.102 N
SSH-CHE 87245212 SSH-.750-CHE 20-2.36 Citizen ER20 7/16-16LH 0.750 2.36 1.50 1.338 N
SSH-CHE 87245228 SHH-.750-CHE 20-5.50 Various ER20 7/16-16LH 0.750 5.50 1.50 1.338 N
SSH-CHE 87245310 SSH-.750-CHE 25-2.00 Citizen ER25 7/16-16LH 0.750 2.00 1.88 1.653 N
SSH-CHE 87246110 SSH-20-CHE 16-50 Tsugami ER16 M10x1.5 20 50 32 28 N
SSH-CHE 87246120 SSH-20-CHE 16-100 Tsugami ER16 M10x1.5 20 100 32 28 N
SSH-CHE 87246206 SSH-20-CHE 20-30 Tsugami ER20 M10x1.5 20 30 38 34 N
SSH-CHE 87246212 SSH-20-CHE 20-60 Tsugami ER20 M10x1.5 20 60 38 34 N
SSH-CHE 87246310 SSH-20-CHE 25-50 Tsugami ER25 M10x1.5 20 50 47 42 N
SSH-CHE 87246320 SSH-20-CHE 25-100 Tsugami ER25 M10x1.5 20 100 47 42 N
SSH-CHE 87246410 SSH-20-CHE 32-50 Tsugami ER32 M10x1.5 20 50 55 50 N
SSH-CHE 87246420 SSH-20-CHE 32-100 Tsugami ER32 M10x1.5 20 100 55 50 N
SSH-CHE 87251220 SSH-1.00-CHE 20-4.00 Various ER20 9/16-16LH 1.000 4.00 1.57 1.338 N
SSH-CHE 87251310 SSH-1.00-CHE 25-2.00 Citizen/Miyano ER25 11/16-16LH 1.000 2.00 1.88 1.653 N
SSH-CHE 87251320 SSH-1.00-CHE 25-4.00 Citizen/Miyano ER25 11/16-16LH 1.000 4.00 1.88 1.653 N
SSH-CHE 87251410 SSH-1.00-CHE 32-2.00 Citizen/Miyano ER32 M14x2 1.000 2.00 2.00 1.968 N
SSH-CHE 87251510 SSH-1.00-CHE 40-2.00 Citizen/Miyano ER40 M14x2 1.000 2.00 2.36 2.48 N
SSH-CHE 87250310 SSH-25-CHE 25-50 Tornos ER25 M16x2 25 50 50 42 N
SSH-CHE 87250320 SSH-25-CHE 25-100 Tornos ER25 M16x2 25 100 50 42 N
SSH-CHE 87250410 SSH-25-CHE 32-50 Tornos ER32 M16x2 25 50 55 50 N
SSH-CHE 87250510 SSH-25-CHE 40-50 Tornos ER40 M16x2 25 50 60 63 N
SSH-CHE 87254412 SSH-1.250-CHE 32-2.50 Various ER32 7/8-16LH 1.25 2.50 2.10 1.968 N
SSH-CHE 87254428 SSH-1.250-CHE 32-5.50 Various ER32 7/8-16LH 1.25 5.50 2.10 1.968 N

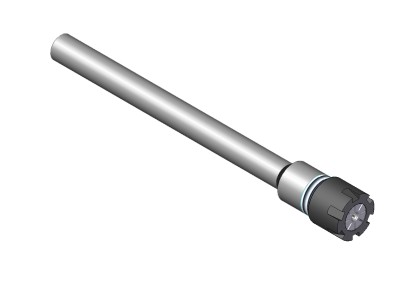

SSH-CHE(M) - NO FLAT ON SHANK



catelog_number Description Machine Brand Er Collet Stop Screw "J" ØD1 Shank "L" Proj "L1" ØD Flat On Shank
SSH-CHE(M) 872410M28 SSH-.500-CHE 11M-5.50 Various ER11 M6x1 0.500 5.50 1.18 0.63 N
SSH-CHE(M) 872411M28 SSH-.500-CHE 16M-5.50 Various ER16 M6x1 0.500 5.50 1.50 0.866 N
SSH-CHE(M) 872412M28 SSH-.500-CHE 20M-5.50 Various ER20 M6x1 0.500 5.50 1.75 1.10 N
SSH-CHE(M) 872420M30 SSH-.625-CHE 11M-6.00 Tornos ER11 5/16-24LH 0.625 6.00 0.88 0.63 N
SSH-CHE(M) 872451M31 SSH-.750-CHE 16M-6.00 Citizen ER16 7/16-16LH 0.750 6.00 1.10 0.866 N
SSH-CHE(M) 872452M28 SSH-.750-CHE 20M-5.50 Various ER20 7/16-16LH 0.750 5.50 1.60 1.10 N
SSH-CHE(M) 872453M20 SSH-.750-CHE 25M-4.00 Citizen ER25 7/16-16LH 0.750 4.00 1.88 1.38 N
SSH-CHE(M) 872461M31 SSH-20-CHE 16M-155 Tsugami ER16 M12x1.75 20 155 25.5 16 N
SSH-CHE(M) 872462M36 SSH-20-CHE 20M-180 Various ER20 M12x1.75 20 140 40 28 N
SSH-CHE(M) 872502M31 SSH-25-CHE 20M-155 Tornos ER20 M12x1.75 25 155 27 28 N
SSH-CHE(M) 872512M31 SSH-1.00-CHE 20M-6.00 Citizen/Miyano ER20 9/16-16LH 1.000 6.00 1.10 1.10 N

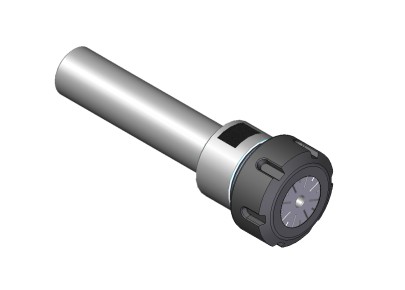

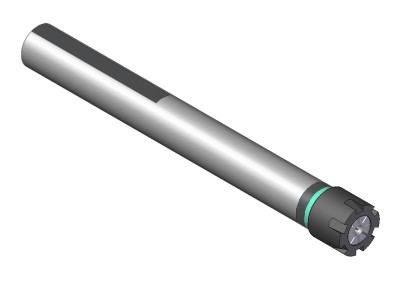

SSHF-CHE(M) - FLAT ON SHANK



catelog_number Description Machine Brand Er Collet Stop Screw "J" ØD1 Shank "L" Proj "L1" ØD Flat On Shank
SSHF-CHE(M) 87242F0M08 SSHF-.625-CHE 11M-1.50 Various ER11 5/16-24LH 0.625 1.50 0.75 0.63 Y
SSHF-CHE(M) 87242F0M28 SSHF-.625-CHE 11M-5.50 Various ER11 5/16-24LH 0.625 5.50 0.75 0.63 Y
SSHF-CHE(M) 87243F0M08 SSHF-16-CHE 11M-38 Star ER11 M8x1 16 38 19 16 Y
SSHF-CHE(M) 87243F0M28 SSHF-16-CHE 11M-140 Star ER11 M8x1 16 140 19 16 Y
SSHF-CHE(M) 87245F0M23 SSHF-.750-CHE 11M-4.50 Citizen ER11 7/16-16LH 0.750 4.50 0.75 0.63 Y
SSHF-CHE(M) 87245F1M08 SSHF-.750-CHE 16M-1.50 Citizen ER16 7/16-16LH 0.750 1.50 1.10 0.866 Y
SSHF-CHE(M) 87245F1M14 SSHF-.750-CHE 16M-2.75 Citizen ER16 7/16-16LH 0.750 2.75 1.10 0.866 Y
SSHF-CHE(M) 87245F1M24 SSHF-.750-CHE 16M-4.75 Citizen ER16 7/16-16LH 0.750 4.75 1.10 0.866 Y
SSHF-CHE(M) 87245F1M28 SSHF-.750-CHE 16M-5.50 Citizen ER16 7/16-16LH 0.750 5.50 1.10 0.866 Y
SSHF-CHE(M) 87246F0M12 SSHF-20-CHE 11M-60 Various ER11 M8x1 20 60 19 16 Y
SSHF-CHE(M) 87246F1M08 SSHF-20-CHE 16M-38 Various ER16 M10x1.5 20 38 27 22 Y
SSHF-CHE(M) 87246F1M14 SSHF-20CHE 16M-70 Tsugami ER16 M10x1.5 20 70 27 22 Y
SSHF-CHE(M) 87246F1M24 SSHF-20-CHE 16M-120 Tsugami ER16 M10x1.5 20 120 27 22 Y
SSHF-CHE(M) 87246F1M28 SSHF-20-CHE 16M-140 Tsugami ER16 M10x1.5 20 140 27 22 Y
SSHF-CHE(M) 87251F1M07 SSHF-1.00-CHE 16M-1.30 Various ER16 7/16-16LH 1.000 1.30 1.10 0.866 Y
SSHF-CHE(M) 87251F1M13 SSHF-1.00-CHE 16M-2.55 Citizen/Miyano ER16 7/16-16LH 1.000 2.55 1.10 0.866 Y
SSHF-CHE(M) 87251F1M15 SSHF-1.00-CHE 16M-3.00 Citizen/Miyano ER16 7/16-16LH 1.000 3.00 1.10 0.866 Y
SSHF-CHE(M) 87251F1M20 SSHF-1.00-CHE 16M-4.00 Citizen/Miyano ER16 7/16-16LH 1.000 4.00 1.10 0.866 Y
SSHF-CHE(M) 87251F2M20 SSHF-1.00-CHE 20M-4.00 Citizen/Miyano ER20 9/16-16LH 1.000 4.00 1.10 1.10 Y
SSHF-CHE(M) 87251F2M28 SSHF-1.00-CHE 20M-5.50 Citizen/Miyano ER20 9/16-16LH 1.000 5.50 1.10 1.10 Y
SSHF-CHE(M) 87250F1M13 SSHF-25-CHE 16M-65 Tornos ER16 M10x1.5 25 65 28 22 Y
SSHF-CHE(M) 87250F2M20 SSHF-25-CHE 20M-100 Tornos ER20 M12x1.75 25 100 28 28 Y
SSHF-CHE(M) 87250F2M30 SSHF-25-CHE 20M-150 Tornos ER20 M12x1.75 25 150 28 28 Y
SSHF-CHE(M) 872503M15 SSHF-25-CHE 25M-75 Tornos ER25 M16x2 25 75 50 35 Y
SSHF-CHE(M) 872503M29 SSHF-25-CHE 25M-145 Tornos ER25 M16x2 25 145 36 35 Y

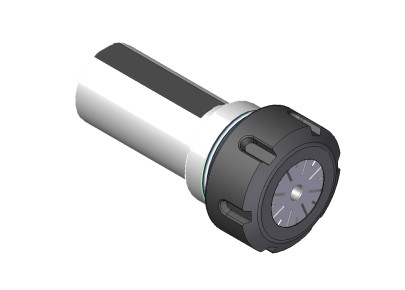

SSH-NC-CHE - FLAT ON SHANK



catelog_number Description Machine Brand Er Collet Stop Screw "J" ØD1 Shank "L" Proj "L1" ØD Flat On Shank
SSH-NC-CHE 87254F312 SSHF-NC-1.250-CHE 25-2.36 Various ER25 11/16-16LH 1.250 2.36 1.25 1.653 Y
SSH-NC-CHE 87254F412 SSHF-NC-1.250-CHE 32-2.36 Various ER32 M22x1.5 1.250 2.36 1.50 1.968 Y
SSH-NC-CHE 87254F512 SSHF-NC-1.250-CHE 40-2.36 Various ER40 M22x1.5 1.250 2.36 2.20 2.480 Y
SSH-NC-CHE 87259F416 SSHF-NC-1.500-CHE 32-3.15 Various ER32 M22x1.5 1.500 3.15 1.50 1.968 Y
SSH-NC-CHE 87259F515 SSHF-NC-1.500-CHE 40-3.00 Various ER40 M22x1.5 1.500 3.00 2.20 2.480 Y

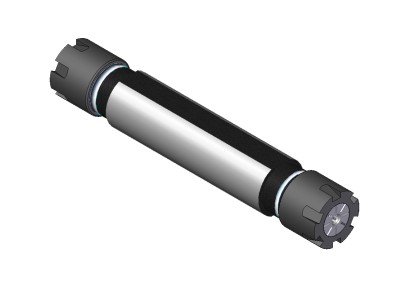

SSH-DEF-CHE(M) - FLAT ON SHANK



catelog_number Description Machine Brand Er Collet Stop Screw "J" ØD1 Shank "L" Proj "L1" ØD Flat On Shank
SSH-DEF-CHE(M) 872430M0M18 SSH-DEF-16-CHE 11M-50 Star ER11 M6x1 16 50 89 16 Y
SSH-DEF-CHE(M) 872450M M16 SSH-DEF-.750-CHE 11M-40 Citizen ER11 5/16-24LH 19.05 40 79 16 Y
SSH-DEF-CHE(M) 872450M0M22 SSH-DEF-.750-CHE 11M-70 Citizen ER11 5/16-24LH 19.05 70 109 16 Y
SSH-DEF-CHE(M) 872450M0M26 SSH-DEF-.750-CHE 11M-90 Citizen ER11 5/16-24LH 19.05 90 129 16 Y
SSH-DEF-CHE(M) 872451M1M21 SSH-DEF-.750-CHE 16M-55 Citizen ER16 7/16-16LH 19.05 55 107 22 Y
SSH-DEF-CHE(M) 872460M0M14 SSH-DEF-20-CHE 11M-30 Tsugami ER11 5/16-24LH 20 30 69 16 Y
SSH-DEF-CHE(M) 872460M0M28 SSH-DEF-20-CHE 11M-50 Tsugami ER11 5/16-24LH 20 50 89 16 Y
SSH-DEF-CHE(M) 872461M1M21 SSH-DEF-20-CHE 16M-55 Tsugami ER16 7/16-16LH 20 55 107 22 Y
SSH-DEF-CHE(M) 872471M1M22 SSH-DEF-22-CHE 16M-55 Star/Tsugami ER16 7/16-16LH 22 55 110 22 Y
SSH-DEF-CHE(M) 872471M1M26 SSH-DEF-22-CHE 16M-75 Star/Tsugami ER16 7/16-16LH 22 75 130 22 Y
SSH-DEF-CHE(M) 872501M1M24 SSH-DEF-25-CHE 16M-62 Tornos ER16 7/16-16LH 25 62 117 22 Y
SSH-DEF-CHE(M) 872511M1M24 SSH-DEF-1.00-CHE 16M-62 Miyano ER16 7/16-16LH 25.4 62 117 22 Y
SSH-DEF-CHE(M) 872552M2M22 SSH-DEF-32-CHE 20M-55 Various ER20 9/16-16LH 32 55 110 28 Y
SSH-DEF-CHE(M) 872552M2M26 SSH-DEF-32-CHE 20M-75 Various ER20 9/16-16LH 32 75 130 28 Y
