• ER COLLET AND NUT

HOME >> CNC Tool Holders >> ER COLLET AND NUT

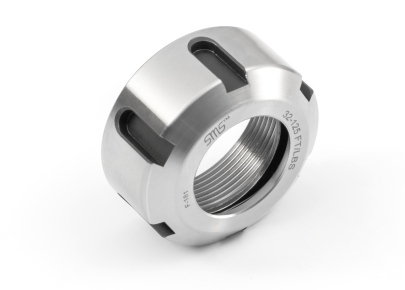

ER NUT

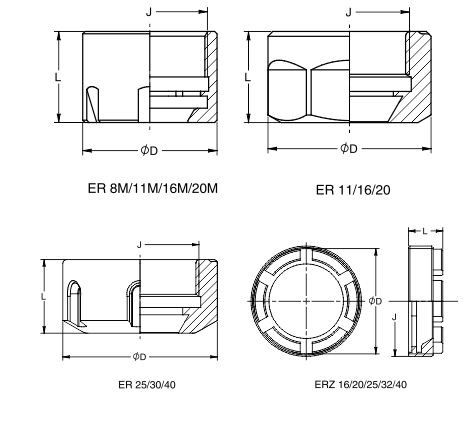

Catelog Number Description Collet Size "D" L "J" THREAD
ER NUT 87921111 ER11M NUT ER11 16 11.3 M13x0.75
ER NUT 87921110 ER11 NUT ER11 19 11.8 M14x0.75
ER NUT 87921161 ER16M NUT ER16 22 19 M19x1
ER NUT 87921160 ER16 NUT ER16 28 19 M22x1.50
ER NUT 87921201 ER20M NUT ER20 28 19.5 M24x1
ER NUT 87921200 ER20 NUT ER20 34 19.5 M25x1.5
ER NUT 87921251 ER25M NUT ER25 35 20.6 M30x1.5
ER NUT 87921250 ER25 NUT ER25 42 20.6 M32x1.5
ER NUT 87921320 ER32 NUT ER32 50 23 M40x1.5
ER NUT 87921400 ER40 NUT ER40 63 26 M50x1.5
ER NUT 879Z21160 ER16Z NUT ER16 24 11.5 M24x1
ER NUT 879Z21200 ER20Z NUT ER20 28 12 M28x1.5
ER NUT 879Z21250 ER25Z NUT ER25 32 12.5 M32x1.5
ER NUT 879Z21320 ER32Z NUT ER32 40 12.4 M40x1.5
ER NUT 879Z21400 ER40Z NUT ER40 50 14.5 M50x1.5

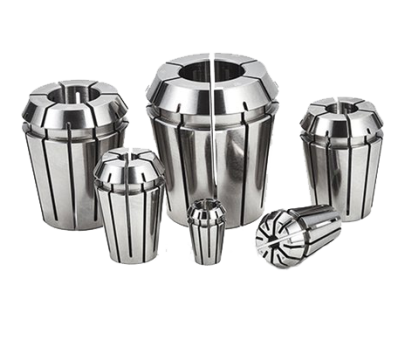

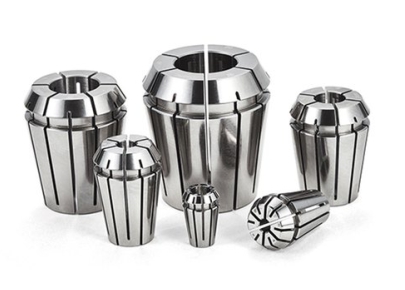

ER COLLET SETS



Catelog Number Description Collets Included No of Collets
ER COLLET INCH ID SETS 95220000 ER11 COLLET SETS 0.125-0.250 5
ER COLLET INCH ID SETS 95220001 ER11 COLLET SETS 0.125-0.250 10
ER COLLET INCH ID SETS 95221000 ER16 COLLET SETS 0.125-0.375 9
ER COLLET INCH ID SETS 95222000 ER20 COLLET SETS 0.125-0.500 15
ER COLLET INCH ID SETS 95223000 ER25 COLLET SETS 0.125-0.625 18
ER COLLET INCH ID SETS 95224000 ER32 COLLET SETS 0.125-0.750 20
ER COLLET INCH ID SETS 95225000 ER40 COLLET SETS 0.125-1.000 15
ER COLLET METRIC ID SETS 95220009 ER11 COLLET SETS 3mm-7mm 9
ER COLLET METRIC ID SETS 95221009 ER16 COLLET SETS 3mm-10mm 8
ER COLLET METRIC ID SETS 95222009 ER20 COLLET SETS 3mm-13mm 11
ER COLLET METRIC ID SETS 95223009 ER25 COLLET SETS 3mm-16mm 14
ER COLLET METRIC ID SETS 95224009 ER32 COLLET SETS 3mm-20mm 18
ER COLLET METRIC ID SETS 95225009 ER40 COLLET SETS 4mm-26mm 23

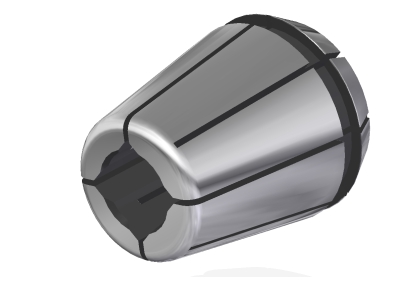

ER-T COLLET - INCH TAP COLLETS-DIN6499/ISO15488 ANSI STANDARD TAPS

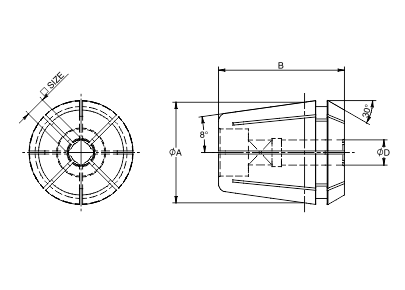

Catelog Number Model Tap Size SHANK SIZE "ØD" SQUARE SIZE "ØA" B
95530112 ERT11 COLLET #0-#6 0.141 0.11 11 18
95530147 ERT11 COLLET #8 0.168 0.131 11 18
95530180 ERT11 COLLET #10 0.194 0.152 11 18
95530218 ERT11 COLLET #12 0.22 0.165 11 18
95531112 ERT16 COLLET #0-#6 0.141 0.11 16 27.5
95531147 ERT16 COLLET #8 0.168 0.131 16 27.5
95531180 ERT16 COLLET #10 0.194 0.152 16 27.5
95531218 ERT16 COLLET #12 0.22 0.165 16 27.5
95531262 ERT16 COLLET 1/4" 0.255 0.191 16 27.5
95531324 ERT16 COLLET 5/16" 0.318 0.238 16 27.5
95532112 ERT20 COLLET #0-#6 0.141 0.11 20 31.5
95532147 ERT20 COLLET #8 0.168 0.131 20 31.5
95532180 ERT20 COLLET #10 0.194 0.152 20 31.5
95532218 ERT20 COLLET #12 0.22 0.165 20 31.5
95532262 ERT20 COLLET 1/4" 0.255 0.191 20 31.5
95532324 ERT20 COLLET 5/16" 0.318 0.238 20 31.5
95532385 ERT20 COLLET 3/8" 0.381 0.286 20 31.5
95532330 ERT20 COLLET 7/16" 0.323 0.242 20 31.5
95532366 ERT20 COLLET 1/2" 0.367 0.275 20 31.5
95532306 ERT20 COLLET 1/8"NPT 0.313 0.234 20 31.5
95533112 ERT25 COLLET #0-#6 0.141 0.11 25 34
95533147 ERT25 COLLET #8 0.168 0.131 25 34
95533180 ERT25 COLLET #10 0.194 0.152 25 34
95533218 ERT25 COLLET #12 0.22 0.165 25 34
95533262 ERT25 COLLET 1/4" 0.255 0.191 25 34
95533324 ERT25 COLLET 5/16" 0.318 0.238 25 34
95533385 ERT25 COLLET 3/8" 0.381 0.286 25 34
95533330 ERT25 COLLET 7/16" 0.323 0.242 25 34
95533366 ERT25 COLLET 1/2" 0.367 0.275 25 34
95533402 ERT25 COLLET 9/16" 0.429 0.322 25 34
95533435 ERT25 COLLET 5/8" 0.48 0.36 25 34
95533306 ERT25 COLLET 1/8"NPT 0.313 0.234 25 34
95533412 ERT25 COLLET 1/8"NPT 0.437 0.329 25 34
95534112 ERT32 COLLET #0-#6 0.141 0.11 32 40
95534147 ERT32 COLLET #8 0.168 0.131 32 40
95534180 ERT32 COLLET #10 0.194 0.152 32 40
95534218 ERT32 COLLET #12 0.220 0.165 32 40
95534262 ERT32 COLLET 1/4" 0.255 0.191 32 40
95534324 ERT32 COLLET 5/16" 0.318 0.238 32 40
95534385 ERT32 COLLET 3/8" 0.381 0.286 32 40
95534330 ERT32 COLLET 7/16" 0.323 0.242 32 40
95534366 ERT32 COLLET 1/2" 0.367 0.275 32 40
95534402 ERT32 COLLET 9/16" 0.429 0.322 32 40
95534435 ERT32 COLLET 5/8" 0.480 0.360 32 40
95534460 ERT32 COLLET 11/16" 0.542 0.406 32 40
95534481 ERT32 COLLET 3/4" 0.590 0.442 32 40
95534652 ERT32 COLLET 13/16" 0.652 0.489 32 40
95534306 ERT32 COLLET 1/8"NPT 0.313 0.234 32 40
95534412 ERT32 COLLET 1/8"NPT 0.437 0.329 32 40
95534476 ERT32 COLLET 1/4"NPT 0.563 0.421 32 40
95535112 ERT40 COLLET #0-#6 0.141 0.11 40 46
95535147 ERT40 COLLET #8 0.168 0.131 40 46
95535180 ERT40 COLLET #10 0.194 0.152 40 46
95535218 ERT40 COLLET #12 0.22 0.165 40 46
95535262 ERT40 COLLET 1/4" 0.255 0.191 40 46
95535324 ERT40 COLLET 5/16" 0.318 0.238 40 46
95535385 ERT40 COLLET 3/8" 0.381 0.286 40 46
95535330 ERT40 COLLET 7/16" 0.323 0.242 40 46
95535366 ERT40 COLLET 1/2" 0.367 0.275 40 46
95535402 ERT40 COLLET 9/16" 0.429 0.322 40 46
95535435 ERT40 COLLET 5/8" 0.48 0.36 40 46
95535460 ERT40 COLLET 11/16" 0.542 0.406 40 46
95535481 ERT40 COLLET 3/4" 0.59 0.442 40 46
95535652 ERT40 COLLET 13/16" 0.652 0.489 40 46
95535697 ERT40 COLLET 7/8" 0.697 0.523 40 46
95535760 ERT40 COLLET 15/16" 0.76 0.57 40 46
95535800 ERT40 COLLET 1.0" 0.8 0.6 40 46
95535306 ERT40 COLLET 1/8"NPT 0.313 0.234 40 46
95535412 ERT40 COLLET 1/8"NPT 0.437 0.329 40 46
95535476 ERT40 COLLET 1/4"NPT 0.563 0.421 40 46
99535521 ERT40 COLLET 3/8"NPT 0.7 0.531 40 46

ER-T COLLET - METRIC TAP COLLETS-DIN6499/ISO15488 ANSI STANDARD TAPS



Catelog Number Model Tap Size SHANK SIZE "ØD" SQUARE SIZE "ØA" B
95530091 ERT11 COLLET M3 (DIN371) 3.5 2.7 11 18
95530121 ERT11 COLLET M3.5 (DIN371) 4 3 11 18
95530151 ERT11 COLLET M6 (DIN376) 4.5 3.4 11 18
95530232 ERT11 COLLET M6 (DIN371) 6 4.9 11 18
95530232 ERT11 COLLET M8 (DIN376) 6 4.9 11 18
95530274 ERT11 COLLET M10 (DIN376) 7 5.5 11 18
95531091 ERT16 COLLET M3 (DIN371) 3.5 2.7 16 27.5
95531121 ERT16 COLLET M3.5 (DIN371) 4 3 16 27.5
95531151 ERT16 COLLET M6 (DIN376) 4.5 3.4 16 27.5
95531232 ERT16 COLLET M6 (DIN371) 6 4.9 16 27.5
95531232 ERT16 COLLET M8 (DIN376) 6 4.9 16 27.5
95531274 ERT16 COLLET M10 (DIN376) 7 5.5 16 27.5
95531310 ERT16 COLLET M8 (DIN371) 8 6.2 16 27.5
95531348 ERT16 COLLET M12 (DIN376) 9 7 16 27.5
95531389 ERT16 COLLET M10 (DIN371) 10 8 16 27.5
95532091 ERT20 COLLET M3 (DIN371) 3.5 2.7 20 31.5
95532121 ERT20 COLLET M3.5 (DIN371) 4 3 20 31.5
95532151 ERT20 COLLET M6 (DIN376) 4.5 3.4 20 31.5
95532232 ERT20 COLLET M6 (DIN371) 6 4.9 20 31.5
95532232 ERT20 COLLET M8 (DIN376) 6 4.9 20 31.5
95532274 ERT20 COLLET M10 (DIN376) 7 5.5 20 31.5
95532310 ERT20 COLLET M8 (DIN371) 8 6.2 20 31.5
95532348 ERT20 COLLET M12 (DIN376) 9 7 20 31.5
95532389 ERT20 COLLET M10 (DIN371) 10 8 20 31.5
95532408 ERT20 COLLET M14 (DIN376) 11 9 20 31.5
95532430 ERT20 COLLET M16 (DIN376) 12 9 20 31.5
95533091 ERT25 COLLET M3 (DIN371) 3.5 2.7 25 34
95533121 ERT25 COLLET M3.5 (DIN371) 4 3 25 34
95533151 ERT25 COLLET M6 (DIN376) 4.5 3.4 25 34
95533232 ERT25 COLLET M6 (DIN371) 6 4.9 25 34
95533232 ERT25 COLLET M8 (DIN376) 6 4.9 25 34
95533274 ERT25 COLLET M10 (DIN376) 7 5.5 25 34
95533310 ERT25 COLLET M8 (DIN371) 8 6.2 25 34
95533348 ERT25 COLLET M12 (DIN376) 9 7 25 34
95533389 ERT25 COLLET M10 (DIN371) 10 8 25 34
95533408 ERT25 COLLET M14 (DIN376) 11 9 25 34
95533430 ERT25 COLLET M16 (DIN376) 12 9 25 34
95533465 ERT25 COLLET M18 (DIN376) 14 11 25 34
95533491 ERT25 COLLET M20 (DIN376) 16 12 25 34
95534091 ERT32 COLLET M3 (DIN371) 3.5 2.7 32 40
95534121 ERT32 COLLET M3.5 (DIN371) 4 3 32 40
95534151 ERT32 COLLET M6 (DIN376) 4.5 3.4 32 40
95534232 ERT32 COLLET M6 (DIN371) 6 4.9 32 40
95534232 ERT32 COLLET M8 (DIN376) 6 4.9 32 40
95534274 ERT32 COLLET M10 (DIN376) 7 5.5 32 40
95534310 ERT32 COLLET M8 (DIN371) 8 6.2 32 40
95534348 ERT32 COLLET M12 (DIN376) 9 7 32 40
95534389 ERT32 COLLET M10 (DIN371) 10 8 32 40
95534408 ERT32 COLLET M14 (DIN376) 11 9 32 40
95534430 ERT32 COLLET M16 (DIN376) 12 9 32 40
95534465 ERT32 COLLET M18 (DIN376) 14 11 32 40
95534491 ERT32 COLLET M20 (DIN376) 16 12 32 40
95534531 ERT32 COLLET M22/M24 (DIN376) 18 14.5 32 40
95534556 ERT32 COLLET M27 (DIN376) 20 16 32 40
95534578 ERT32 COLLET M30 (DIN376) 22 18 32 40
95534615 ERT32 COLLET M33 (DIN376) 25 20 32 40
95535091 ERT40 COLLET M3 (DIN371) 3.5 2.7 40 46
95535121 ERT40 COLLET M3.5 (DIN371) 4 3 40 46
95535151 ERT40 COLLET M6 (DIN376) 4.5 3.4 40 46
95535232 ERT40 COLLET M6 (DIN371) 6 4.9 40 46
95535232 ERT40 COLLET M8 (DIN376) 6 4.9 40 46
95535274 ERT40 COLLET M10 (DIN376) 7 5.5 40 46
95535310 ERT40 COLLET M8 (DIN371) 8 6.2 40 46
95535348 ERT40 COLLET M12 (DIN376) 9 7 40 46
95535389 ERT40 COLLET M10 (DIN371) 10 8 40 46
95535408 ERT40 COLLET M14 (DIN376) 11 9 40 46
95535430 ERT40 COLLET M16 (DIN376) 12 9 40 46
95535465 ERT40 COLLET M18 (DIN376) 14 11 40 46
95535491 ERT40 COLLET M20 (DIN376) 16 12 40 46
95535531 ERT40 COLLET M22/M24 (DIN376) 18 14.5 40 46
95535556 ERT40 COLLET M27 (DIN376) 20 16 40 46
95535578 ERT40 COLLET M30 (DIN376) 22 18 40 46
95535615 ERT40 COLLET M33 (DIN376) 25 20 40 46
