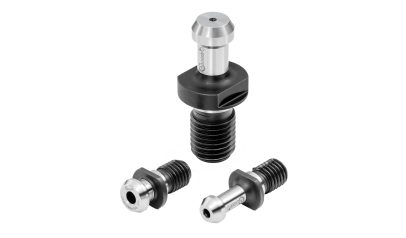

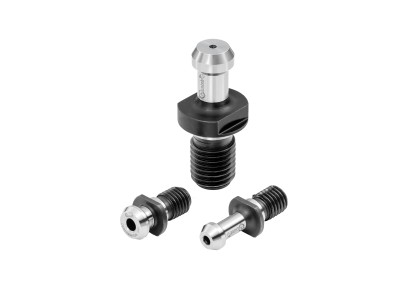

RETENTION KNOBS



Machine Spindle : A-Hurco, B-DMG / Mori Seiki, C-Toyoda, D-Mazak, E-Okuma, F-Brother, G-Fanuc, I-Matsuura, H-Haas, J-OKK, K-Doosan, M-Kitamura, N-Makino, P-SNK, R-Yasda, S-Mitsui Seiki, T-Fadal, U-Ikegai, W-Kira, Y-Kia V-Victor, Z-Toshiba
Catalog Number MACHINE SPINDAL TAPER COOLANT HOLE Y/N Fig. "A" PULL ANGLE "D1" HEAD "D2" NECK "D3" PILOT DIA. "L4" PILOT LENGTH "L1" OAL "L2" PROJ. "L3" PULL LENGTH "H" COOLANT HOLE FLATS "T" KNOB THREAD MACHINE SPINDLE
RETENTION KNOBS 9618150105 SK30 N 1 75 13mm 9mm 13mm 5mm 44mm 24mm 19mm N 14mm M12 P
RETENTION KNOBS 9618150105C SK30 Y 1 75 13mm 9mm 13mm 5mm 44mm 24mm 19mm 3mm 14mm M12 P
RETENTION KNOBS 9619150205 SK40 N 1 75 19mm 14mm 17mm 7mm 54mm 26mm 20mm N 19mm M16 SK40
RETENTION KNOBS 9619150205C SK40 Y 1 75 19mm 14mm 17mm 7mm 54mm 26mm 20mm 7mm 19mm M16 SK40
RETENTION KNOBS 9621150407 SK50 N 1 75 28mm 21mm 25mm 10mm 74mm 34mm 25mm N 30mm M24 P
RETENTION KNOBS 9621150407C SK50 Y 75 28mm 21mm 25mm 10mm 74mm 34mm 25mm 11.50mm 30mm M24 P
RETENTION KNOBS 9610450102 BT30 N 2 45 0.520 0.385 - - 1.100 0.460 0.320 N 13mm M12 A
RETENTION KNOBS 9610450105 BT30 N 1 45 0.433 0.276 0.492 0.157 1.683 0.906 0.709 N 13mm M12 G,H,J
RETENTION KNOBS 9610600105 BT30 N 1 60 0.433 0.276 0.492 0.157 1.683 0.906 0.709 N 13mm M12 B,E,F,I
RETENTION KNOBS 9610900105 BT30 N 1 90 0.549 0.313 0.492 0.157 1.770 0.906 0.709 N 13mm M12 -
RETENTION KNOBS 9612450207 BT40 N 1 45 0.591 0.394 0.669 0.236 2.362 1.378 1.102 N 19mm M16 C,E,H,N
RETENTION KNOBS 9612600207 BT40 N 1 60 0.591 0.394 0.669 0.236 2.362 1.378 1.102 N 19mm M16 E
RETENTION KNOBS 9612750206 BT40 N 1 75 0.748 0.551 0.669 0.236 2.126 1.142 0.906 N 19mm M16 E,I,K,N,R
RETENTION KNOBS 9612900205 BT40 N 1 90 0.591 0.394 0.669 0.236 2.126 0.980 0.709 N 19mm M16 S
RETENTION KNOBS 9612900207 BT40 N 1 90 0.591 0.394 0.669 0.236 2.362 1.378 1.102 N 19mm M16 B, J, T
RETENTION KNOBS 9624450703 CAT40 N 2 45 0.740 0.490 - - 1.624 0.640 0.440 N 19mm 5/8"-11 D,E
RETENTION KNOBS 9624450706 CAT40 N 1 45 0.591 0.394 0.641 0.177 2.250 1.266 0.990 N 19mm 5/8"-11 A, C, E, H, J, K
RETENTION KNOBS 9624600706 CAT40 N 1 60 0.591 0.394 0.641 0.177 2.250 1.266 0.990 N 19mm 5/8"-11 -
RETENTION KNOBS 9624750705 CAT40 N 1 75 0.748 0.551 0.641 0.177 2.010 1.024 0.787 N 19mm 5/8"-11 I,K,M,N
RETENTION KNOBS 9624900706 CAT40 N 1 90 0.591 0.394 0.641 0.177 2.244 1.260 0.984 N 19mm 5/8"-11 B,J
RETENTION KNOBS 9626450905 CAT50 N 2 45 1.140 0.820 - - 2.300 1.000 0.700 N 1.25 1"-8 A,N
RETENTION KNOBS 9626450909 CAT50 N 1 45 0.906 0.669 1.031 0.217 3.354 1.780 1.386 N 30mm 1"-8 H,M
RETENTION KNOBS 9626600909 CAT50 N 1 60 0.906 0.669 1.024 0.217 3.354 1.772 1.378 N 30mm 1"-8 I,P
RETENTION KNOBS 9626900909 CAT50 N 1 90 0.906 0.669 1.031 0.217 3.346 1.780 1.386 N 30mm 1"-8 B,E,J
RETENTION KNOBS 9610450105C BT30 Y 1 45 0.433 0.276 0.492 0.157 1.683 0.906 0.709 0.118 13mm M12 G,H,J
RETENTION KNOBS 9610450105CO BT30 Y 3 45 0.433 0.276 0.492 0.157 1.683 0.906 0.709 0.118 13mm M12 B
RETENTION KNOBS 9610600105C BT30 Y 1 60 0.433 0.276 0.492 0.157 1.683 0.906 0.709 0.118 13mm M12 B,E,F,I
RETENTION KNOBS 9610750105C BT30 Y 1 75 0.471 0.313 0.492 0.157 1.683 0.920 0.723 0.118 13mm M12 R
RETENTION KNOBS 9610900105C BT30 Y 1 90 0.549 0.313 0.492 0.157 1.770 0.906 0.709 0.118 13mm M12 -
RETENTION KNOBS 9612450204C BT40 Y 1 45 0.740 0.490 0.669 0.236 1.736 0.752 0.552 0.276 19mm M16 D
RETENTION KNOBS 9612450207C BT40 Y 1 45 0.591 0.394 0.669 0.236 2.360 1.378 1.102 0.197 19mm M16 A,C,E,H,J,L,M,N
RETENTION KNOBS 9612750206C BT40 Y 1 75 0.748 0.551 0.669 0.236 2.126 1.142 0.906 0.236 19mm M16 E,I,K,N,R
RETENTION KNOBS 9624450703C CAT40 Y 2 45 0.740 0.490 - - 1.624 0.640 0.440 0.157 19mm 5/8"-11 D,E
RETENTION KNOBS 9624450706C CAT40 Y 1 45 0.591 0.394 0.641 0.177 2.250 1.266 0.990 0.200 19mm 5/8"-11 A, C, E, H, J, K
RETENTION KNOBS 9624750705C CAT40 Y 1 75 0.748 0.551 0.641 0.177 2.010 1.024 0.787 0.236 19mm 5/8"-11 I,K,M,N
RETENTION KNOBS 9624750705C-2O CAT40 Y 4 75 0.748 0.551 0.641 0.177 2.010 1.024 0.787 0.236 19mm 5/8"-11 -
RETENTION KNOBS 9624750705CO CAT40 Y 3 75 0.748 0.551 0.641 0.177 2.010 1.024 0.787 0.236 19mm 5/8"-11 B
RETENTION KNOBS 9624900706C CAT40 Y 1 90 0.591 0.394 0.641 0.177 2.244 1.260 0.984 0.2 19mm 5/8"-11 B,J
RETENTION KNOBS 9626450905COP CAT50 Y 3 45 1.140 0.820 1.031 0.240 2.575 1.000 0.700 0.468 1.250 1"-8 A,C,D,N
RETENTION KNOBS 9626450905CP CAT50 Y 1 45 1.140 0.820 1.031 0.240 2.575 1.000 0.700 0.468 1.250 1"-8 A,C,D,N
RETENTION KNOBS 9626450909C CAT50 Y 1 45 0.906 0.669 1.031 0.217 3.354 1.780 1.386 0.312 30mm 1"-8 H,M
RETENTION KNOBS 9626450909CO CAT50 Y 3 45 0.906 0.669 1.031 0.217 3.354 1.780 1.386 0.312 30mm 1"-8 C
RETENTION KNOBS 9626600909CO CAT50 Y 3 60 0.906 0.669 1.024 0.217 3.508 1.772 1.378 0.312 30mm 1"-8 E
RETENTION KNOBS 9626750907C CAT50 Y 1 75 1.102 0.826 1.031 0.217 2.919 1.344 0.990 0.315 30mm 1"-8 I,K
RETENTION KNOBS 9626900906C CAT50 Y 1 90 0.942 0.706 1.031 0.217 2.519 1.218 0.903 0.315 1.250 1"-8 -
RETENTION KNOBS 9626900909C CAT50 Y 1 90 0.906 0.669 1.031 0.217 3.346 1.780 1.386 0.312 30mm 1"-8 B,E,J
RETENTION KNOBS 9626900909C-2O CAT50 Y 4 90 0.906 0.669 1.031 0.217 3.346 1.780 1.386 0.312 30mm 1"-8 -
RETENTION KNOBS 9610450102C BT30 Y 2 45 0.520 0.385 - - 1.100 0.460 0.320 0.118 13mm M12 A
RETENTION KNOBS 9610450102P BT30 N 1 45 0.520 0.385 0.492 0.157 1.385 0.460 0.320 - 13mm M12 A
RETENTION KNOBS 9610450102CP BT30 Y 1 45 0.520 0.385 0.492 0.157 1.385 0.460 0.320 0.118 13mm M12 A
RETENTION KNOBS 9612450203C BT40 Y 1 45 0.740 0.490 0.669 0.236 1.654 0.640 0.440 0.197 19mm M16 A
RETENTION KNOBS 9612450207CO BT40 Y 3 45 0.591 0.394 0.669 0.236 2.362 1.378 1.102 0.197 19mm M16 U
RETENTION KNOBS 9612600207C BT40 Y 1 60 0.591 0.394 0.669 0.236 2.362 1.378 1.102 0.197 19mm M16 W
RETENTION KNOBS 9612900207C BT40 Y 1 90 0.591 0.394 0.669 0.236 2.362 1.378 1.102 0.197 19mm M16 Y
RETENTION KNOBS 9624450703CO CAT40 Y 3 45 0.740 0.490 0.641 0.177 1.624 0.640 0.440 0.157 19mm 5/8"-11 D (HP)
RETENTION KNOBS 9624600706C CAT40 Y 1 60 0.591 0.394 0.641 0.177 2.250 1.266 0.990 0.200 19mm 5/8"-11 C, Z
RETENTION KNOBS 9626600909C CAT50 Y 1 60 0.906 0.669 1.024 0.217 3.354 1.772 1.378 0.315 30mm 1"-8 E
