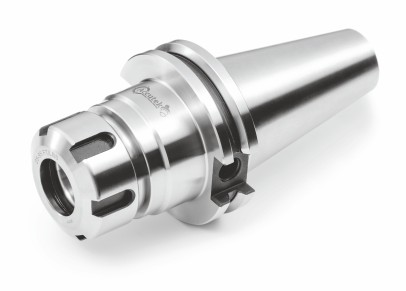

BT ER Collet Chucks (MAS 403)



FEATURES

Balanced G2.5 @ 25,000 RPM

TIR < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description Collet Size "D" Range "D1" "L" "J" Coolant Style
BT30 87210014 BT30-CHE 11-70 ER11 3--7 19 70 M8X1.25 AD Thru
BT30 87210020 BT30-CHE 11-100 ER11 3--7 19 100 M8X1.25 AD Thru
BT30 87210024 BT30-CHE 11-120 ER11 3--7 19 120 M8X1.25 AD Thru
BT30 87210114 BT30-CHE 16-70 ER16 3--10 28 70 M10X1.5 AD Thru
BT30 87210120 BT30-CHE 16-100 ER16 3--10 28 100 M10X1.5 AD Thru
BT30 87210124 BT30-CHE 16-120 ER16 3--10 28 120 M10X1.5 AD Thru
BT30 87210214 BT30-CHE 20-70 ER20 3--13 34 70 M12X1.75 AD Thru
BT30 87210220 BT30-CHE 20-100 ER20 3--13 34 100 M12X1.75 AD Thru
BT30 87210227 BT30-CHE 20-135 ER20 3--13 34 135 M12X1.75 AD Thru
BT30 87210314 BT30-CHE 25-70 ER25 3--16 42 70 M16X2.0 AD Thru
BT30 87210320 BT30-CHE 25-100 ER25 3--16 42 100 M16X2.0 AD Thru
BT30 87210327 BT30-CHE 25-135 ER25 3--16 42 135 M16X2.0 AD Thru
BT30 87210414 BT30-CHE 32-70 ER32 3--20 50 70 M18X1.5 AD Thru
BT40 87212014 BT40-CHE 11-70 ER11 3--7 19 70 M8X1.25 AD Thru
BT40 87212020 BT40-CHE 11-100 ER11 3--7 19 100 M8X1.25 AD Thru
BT40 87212026 BT40-CHE 11-130 ER11 3--7 19 130 M8X1.25 AD Thru
BT40 87212114 BT40-CHE 16-70 ER16 3--10 28 70 M10X1.5 AD Thru
BT40 87212120 BT40-CHE 16-100 ER16 3--10 28 100 M10X1.5 AD Thru
BT40 87212126 BT40-CHE 16-130 ER16 3--10 28 130 M10X1.5 AD Thru
BT40 87212214 BT40-CHE 20-70 ER20 3--13 34 70 M12X1.75 AD Thru
BT40 87212220 BT40-CHE 20-100 ER20 3--13 34 100 M12X1.75 AD Thru
BT40 87212230 BT40-CHE 20-150 ER20 3--13 34 150 M16X2.0 AD Thru
BT40 87212314 BT40-CHE 25-70 ER25 3--16 42 70 M16X2.0 AD Thru
BT40 87212320 BT40-CHE 25-100 ER25 3--16 42 100 M16X2.0 AD Thru
BT40 87212330 BT40-CHE 25-150 ER25 3--16 42 150 M16X2.0 AD Thru
BT40 87212414 BT40-CHE 32-70 ER32 3--20 50 70 M18X1.5 AD Thru
BT40 87212420 BT40-CHE 32-100 ER32 3--20 50 100 M18X1.5 AD Thru
BT40 87212430 BT40-CHE 32-150 ER32 3--20 50 150 M18X1.5 AD Thru
BT40 87212516 BT40-CHE 40-80 ER40 4 -- 26 63 80 M22X1.5 AD Thru
BT40 87212524 BT40-CHE 40-120 ER40 4 -- 26 63 120 M22X1.5 AD Thru

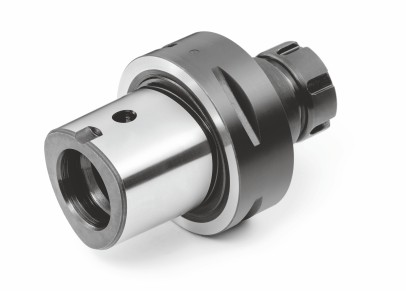

BTP Face Contact ER Collet Chuck



FEATURES

Balanced G2.5 @ 25,000 RPM

TIR < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description Collet Size "D" Range "D1" "L" "J" Adj. Screw Coolant Style
BTP30 872106020 BTP30-CHE 11-100 ER11 3 --7 19 100 M8X1.25 AD Thru
BTP30 872106112 BTP30-CHE 16-60 ER16 3 -- 10 28 60 M10X1.5 AD Thru
BTP30 872106120 BTP30-CHE 16-100 ER16 3 -- 10 28 100 M10X1.5 AD Thru
BTP30 872106212 BTP30-CHE 20-60 ER20 3 --13 34 60 M12X1.75 AD Thru
BTP30 872106221 BTP30-CHE 20-105 ER20 3 --13 34 105 M12X1.75 AD Thru
BTP30 872106312 BTP30-CHE 25-60 ER25 3 -- 16 42 60 M16X2.0 AD Thru
BTP30 872106412 BTP30-CHE 32-60 ER32 3 -- 20 50 60 M18X1.5 AD Thru
BTP30 872106420 BTP30-CHE 32-100 ER32 3 -- 20 50 100 M18X1.5 AD Thru
BTP40 872108020 BTP40-CHE 11-100 ER11 3 --7 19 100 M8X1.25 AD Thru
BTP40 872108114 BTP40-CHE 16-70 ER16 3 -- 10 28 70 M10X1.5 AD Thru
BTP40 872108120 BTP40-CHE 16-100 ER16 3 -- 10 28 100 M10X1.5 AD Thru
BTP40 872108214 BTP40-CHE 20-70 ER20 3 --13 34 70 M12X1.75 AD Thru
BTP40 872108220 BTP40-CHE 20-120 ER20 3 --13 34 120 M12X1.75 AD Thru
BTP40 872108314 BTP40-CHE 25-70 ER25 3 -- 16 42 70 M16X2.0 AD Thru
BTP40 872108320 BTP40-CHE 25-120 ER25 3 -- 16 42 120 M16X2.0 AD Thru
BTP40 872108414 BTP40-CHE 32-70 ER32 3 -- 20 50 70 M18X1.5 AD Thru
BTP40 872108420 BTP40-CHE 32-120 ER32 3 -- 20 50 120 M18X1.5 AD Thru
BTP40 872108416 BTP40-CHE 40-80 ER40 4 -- 26 63 80 M22X1.5 AD Thru
BTP40 872108420 BTP40-CHE 40-120 ER40 4 -- 26 63 120 M22X1.5 AD Thru

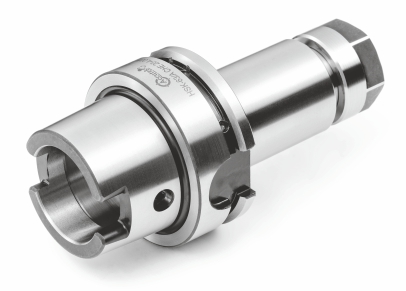

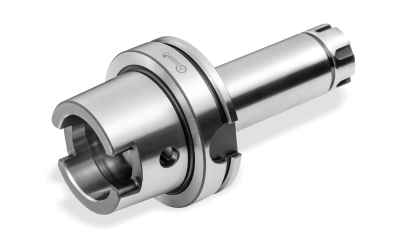

HSK - A ER Collet Chucks (DIN 69893 A+C)



FEATURES

Balanced G2.5 @ 25,000 RPM

TIR < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description Collet Size "D" Range "D1" "L" "J" Adj. Screw Coolant Style
HSK 32A 87271A113 HSK32A-CHE 16-65 ER16 3--10 28 65 M10X1.5 AD Thru
HSK 32A 87271A314 HSK32A-CHE 25-70 ER25 3 -- 16 42 70 M16X2.0 AD Thru
HSK 40A 87272A114 HSK40A-CHE 16-70 ER16 3--10 28 70 M10X1.5 AD Thru
HSK 40A 87272A316 HSK40A-CHE 25-80 ER25 3 -- 16 42 80 M16X2 AD Thru
HSK 40A 87272A420 HSK40A-CHE 32-100 ER32 3 -- 20 50 100 M18X1.5 AD Thru
HSK 50A 87273A116 HSK50A-CHE 16-80 ER16 3--10 28 80 M10X1.5 AD Thru
HSK 50A 87273A319 HSK50A-CHE 25-95 ER25 3 -- 16 42 95 M16X2 AD Thru
HSK 50A 87273A420 HSK50A-CHE 32-100 ER32 3 -- 20 50 100 M18X1.5 AD Thru
HSK 63A 87274A118 HSK63A-CHE 16-90 ER16 3--10 28 90 M10X1.5 AD Thru
HSK 63A 87274A318 HSK63A-CHE 25-90 ER25 3 -- 16 42 90 M16X2 AD Thru
HSK 63A 87274A420 HSK63A-CHE 32-100 ER32 3 -- 20 50 100 M18X1.5 AD Thru
HSK 63A 87274A524 HSK63A-CHE 40-120 ER40 4 -- 26 63 120 M22X1.5 AD Thru
HSK 100A 87276A420 HSK100A-CHE 32-100 ER32 3 -- 20 50 100 M18X1.5 AD Thru
HSK 100A 87276A524 HSK100A-CHE 40-120 ER40 4 -- 26 63 120 M22X1.5 AD Thru

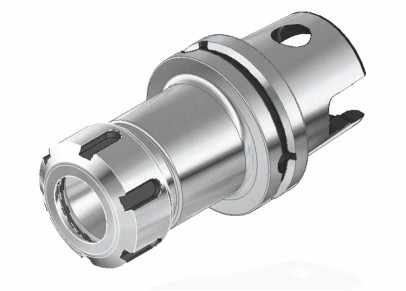

PTI ER Collet Holder (ISO 26623-1 )



FEATURES

Balanced G2.5 @ 25,000 RPM

TIR < 0.005mm

Catalog Number Description Collet Size "D" Range "D1" "L" "J"Adj. Screw Coolant Style
PSC 63 87269012 PSC63-CHE 11-60 ER11 3--7 19 60 M8X1.25 AD Thru
PSC 63 87269014 PSC63-CHE 11-70 ER11 3--7 19 70 M8X1.25 AD Thru
PSC 63 87269020 PSC63-CHE 11-100 ER11 3--7 19 100 M8X1.25 AD Thru
PSC 63 87269024 PSC63-CHE 11-120 ER11 3--7 19 120 M8X1.25 AD Thru
PSC 63 87269112 PSC63-CHE 16-60 ER16 3--10 28 60 M10X1.5 AD Thru
PSC 63 87269114 PSC63-CHE 16-70 ER16 3--10 28 70 M10X1.5 AD Thru
PSC 63 87269120 PSC63-CHE 16-100 ER16 3--10 28 100 M10X1.5 AD Thru
PSC 63 87269124 PSC63-CHE 16-120 ER16 3--10 28 120 M10X1.5 AD Thru
PSC 63 87269212 PSC63-CHE 20-60 ER20 3--13 34 60 M12X1.75 AD Thru
PSC 63 87269214 PSC63-CHE 20-70 ER20 3--13 34 70 M12X1.75 AD Thru
PSC 63 87269220 PSC63-CHE 20-100 ER20 3--13 34 100 M12X1.75 AD Thru
PSC 63 87269224 PSC63-CHE 20-120 ER20 3--13 34 120 M12X1.75 AD Thru
PSC 63 87269227 PSC63-CHE 20-135 ER20 3--13 34 135 M12X1.75 AD Thru
PSC 63 87269318 PSC63-CHE 25-90 ER25 3 -- 16 42 90 M16X2.0 AD Thru
PSC 63 87269420 PSC63-CHE 32-100 ER32 3 -- 20 50 100 M18X1.5 AD Thru
PSC 63 87269524 PSC63-CHE 40-120 ER40 4 -- 26 63 120 M22X1.5 AD Thru
PTI 80 87270213 PTI80-CHE 20-65 ER20 3--13 34 65 M12X1.75 AD Thru
PTI 80 87270314 PTI80-CHE 25-70 ER25 3 -- 16 42 70 M16X2.0 AD Thru
PTI 80 87270414 PTI80-CHE 32-70 ER32 3 -- 20 50 70 M18X1.5 AD Thru
PTI 80 87270420 PTI80-CHE 32-100 ER32 3 -- 20 50 100 M18X1.5 AD Thru
PTI 80 87270432 PTI80-CHE 32-160 ER32 3 -- 20 50 160 M18X1.5 AD Thru
PTI 80 87270446 PTI80-CHE 32-230 ER32 3 -- 20 50 230 M18X1.5 AD Thru
PTI 80 87270466 PTI80-CHE 32-330 ER32 3 -- 20 50 330 M18X1.5 AD Thru
PTI 80 87270514 PTI80-CHE 40-70 ER40 4 -- 26 63 70 M22X1.5 AD Thru
PTI 80 87270520 PTI80-CHE 40-100 ER40 4 -- 26 63 100 M22X1.5 AD Thru
PTI 80 87270524 PTI80-CHE 40-120 ER40 4 -- 26 63 120 M22X1.5 AD Thru
PTI 80 87270532 PTI80-CHE 40-160 ER40 4 -- 26 63 160 M22X1.5 AD Thru

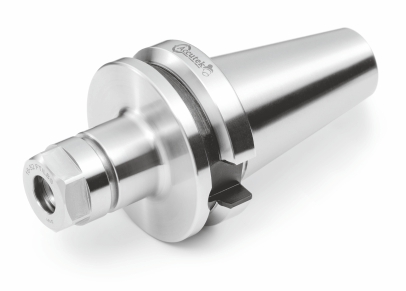

SK ER Collet Holder (DIN 69871 FORM A)



FEATURES

Balanced G2.5 @ 25,000 RPM

TIR < 0.005mm

AD coolant thru the spindle

Taper Shank ground to AT3 accuracy (or better)

Catalog Number Description Collet Size "D" Range "D1" "L" "J" Coolant Style
SK40 87219014 SK40-CHE 11-70 ER11 3--7 19 70 M8x1.25 AD Thru
SK40 87219020 SK40-CHE 11-100 ER11 3--7 19 100 M8x1.25 AD Thru
SK40 87219026 SK40-CHE 11-130 ER11 3--7 19 130 M8x1.25 AD Thru
SK40 87219114 SK40-CHE 16-70 ER16 3--10 28 70 M10x1.50 AD Thru
SK40 87219120 SK40-CHE 16-100 ER16 3--10 28 100 M10x1.50 AD Thru
SK40 87219126 SK40-CHE 16-130 ER16 3--10 28 130 M10x1.50 AD Thru
SK40 87219130 SK40-CHE 16-150 ER16 3--10 28 150 M10x1.50 AD Thru
SK40 87219214 SK40-CHE 20-70 ER20 3--13 34 70 M12x1.75 AD Thru
SK40 87219220 SK40-CHE 20-100 ER20 3--13 34 100 M12x1.75 AD Thru
SK40 87219230 SK40-CHE 20-150 ER20 3--13 34 150 M12x1.75 AD Thru
SK40 87219314 SK40-CHE 25-70 ER25 3 -- 16 42 70 M16x2 AD Thru
SK40 87219320 SK40-CHE 25-100 ER25 3 -- 16 42 100 M16x2 AD Thru
SK40 87219330 SK40-CHE 25-150 ER25 3 -- 16 42 150 M16x2 AD Thru
SK40 87219414 SK40-CHE 32-70 ER32 3 -- 20 50 70 M18x1.5 AD Thru
SK40 87219420 SK40-CHE 32-100 ER32 3 -- 20 50 100 M18x1.5 AD Thru
SK40 87219430 SK40-CHE 32-150 ER32 3 -- 20 50 150 M18x1.5 AD Thru
SK40 87219516 SK40-CHE 40-80 ER40 4 -- 26 63 80 M22x1.5 AD Thru
SK40 87219520 SK40-CHE 40-100 ER40 4 -- 26 63 100 M22x1.5 AD Thru
SK40 87219524 SK40-CHE 40-120 ER40 4 -- 26 63 120 M22x1.5 AD Thru
SK50 87221120 SK50-CHE 16-105 ER16 3--10 28 105 M10x1.50 AD Thru
SK50 87221130 SK50-CHE 16-150 ER16 3--10 28 150 M10x1.50 AD Thru
SK50 87221220 SK50-CHE 20-105 ER20 3--13 34 105 M12x1.75 AD Thru
SK50 87221230 SK50-CHE 20-150 ER20 3--13 34 150 M12x1.75 AD Thru
SK50 87221230 SK50-CHE 20-200 ER20 3--13 34 200 M12.1.75 AD Thru
SK50 87221320 SK50-CHE 25-105 ER25 3 -- 16 42 105 M16x2 AD Thru
SK50 87221330 SK50-CHE 25-150 ER25 3 -- 16 42 150 M16x2 AD Thru
SK50 87221420 SK50-CHE- 25-200 ER25 3 -- 16 42 200 M16x2 AD Thru
SK50 87221430 SK50-CHE 32-105 ER32 3 -- 20 50 105 M18x1.50 AD Thru
SK50 87221441 SK50-CHE 32-150 ER32 3 -- 20 50 150 M18x1.50 AD Thru
SK50 87221520 SK50-CHE 32-200 ER32 3 -- 20 50 200 M18x1.50 AD Thru
SK50 87221530 SK50-CHE 40-105 ER40 4 -- 26 63 105 M22.x1.50 AD Thru
SK50 87221520 SK50-CHE 40-150 ER40 4 -- 26 63 150 M22.x1.50 AD Thru
SK50 87221540 SK50-CHE 40-200 ER40 4 -- 26 63 200 M22.x1.50 AD Thru

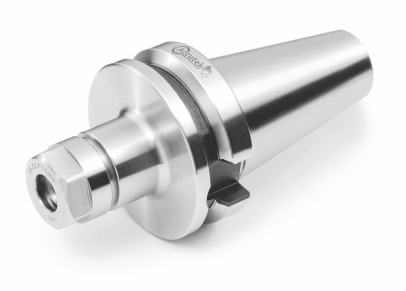

SKP ER Collet Holder



FEATURES

Balanced G2.5 @ 25,000 RPM

TIR < 0.005mm

AD coolant thru the spindle

Taper Shank ground to AT3 accuracy (or better)

Catalog Number Description Collet Size "D" Range "D1" "L" "J"Adj. Screw Coolant Style
SKP40 872126014 SKP40-CHE 11-70 ER11 3--7 19 70 M8X1.25 AD Thru
SKP40 872126020 SKP40-CHE 11-100 ER11 3--7 19 100 M8X1.25 AD Thru
SKP40 872126026 SKP40-CHE 11-130 ER11 3--7 19 130 M8X1.25 AD Thru
SKP40 872126114 SKP40-CHE 16-70 ER16 3--10 28 70 M10x1.5 AD Thru
SKP40 872126120 SKP40-CHE 16-100 ER16 3--10 28 100 M10x1.5 AD Thru
SKP40 872126126 SKP40-CHE 16-130 ER16 3--10 28 130 M10x1.5 AD Thru
SKP40 872126214 SKP40-CHE 20-70 ER20 3--13 34 70 M12.1.75 AD Thru
SKP40 872126220 SKP40-CHE 20-100 ER20 3--13 34 100 M12x1.75 AD Thru
SKP40 872126230 SKP40-CHE 20-150 ER20 3--13 34 150 M12x1.75 AD Thru
SKP40 872126314 SKP40-CHE 25-70 ER25 3 -- 16 42 135 M16x2.0 AD Thru
SKP40 872126320 SKP40-CHE 25-100 ER25 3 -- 16 42 100 M16x2.0 AD Thru
SKP40 872126330 SKP40-CHE 25-150 ER25 3 -- 16 42 150 M16x2.0 AD Thru
SKP40 872126414 SKP40-CHE 32-70 ER32 3 -- 20 50 70 M18x1.5 AD Thru
SKP40 872126420 SKP40-CHE 32-100 ER32 3 -- 20 50 100 M18x1.5 AD Thru
SKP40 872126430 SKP40-CHE 32-150 ER32 3 -- 20 50 150 M18x1.5 AD Thru
SKP40 872126516 SKP40-CHE 40-80 ER40 4 -- 26 63 80 M22x1.5 AD Thru
SKP40 872126524 SKP40-CHE 40-120 ER40 4 -- 26 63 120 M22x1.5 AD Thru
SKP50 872128014 SKP50-CHE 11-70 ER11 3--7 19 70 M8X1.25 AD Thru
SKP50 872128020 SKP50-CHE 11-100 ER11 3--7 19 100 M8X1.25 AD Thru
SKP50 872128026 SKP50-CHE 11-130 ER11 3--7 19 130 M8X1.25 AD Thru
SKP50 872128114 SKP50-CHE 16-70 ER16 3--10 28 70 M10x1.5 AD Thru
SKP50 872128120 SKP50-CHE 16-100 ER16 3--10 28 100 M10x1.5 AD Thru
SKP50 872128130 SKP50-CHE 16-150 ER16 3--10 28 150 M10x1.5 AD Thru
SKP50 872128214 SKP50-CHE 20-70 ER20 3--13 34 70 M12x1.75 AD Thru
SKP50 872128220 SKP50-CHE 20-100 ER 20 3--13 34 100 M12x1.75 AD Thru
SKP50 872128230 SKP50-CHE 20-150 ER 20 3--13 34 150 M16x2.0 AD Thru
SKP50 872128314 SKP50-CHE 25-70 ER25 3 -- 16 42 70 M16x2.0 AD Thru
SKP50 872128320 SKP50-CHE 25-100 ER25 3 -- 16 42 100 M16x2.0 AD Thru
SKP50 872128330 SKP50-CHE 25-150 ER25 3 -- 16 42 150 M16x2.0 AD Thru
SKP50 872128414 SKP50-CHE 32-70 ER32 3 -- 20 50 70 M18x1.5 AD Thru
SKP50 872128420 SKP50-CHE 32-100 ER32 3 -- 20 50 100 M18x1.5 AD Thru
SKP50 872128430 SKP50-CHE 32-150 ER32 3 -- 20 50 150 M18x1.5 AD Thru
SKP50 872128516 SKP50-CHE 40-80 ER40 4 -- 26 63 80 M22x1.5 AD Thru
SKP50 872128524 SKP50-CHE 40-120 ER40 4 -- 26 63 120 M22x1.5 AD Thru

KTI Collet Holder (ISO 26622-1)



FEATURES

Balanced G2.5 @ 25,000 RPM

TIR < 0.005mm

AD coolant thru the spindle

Catalog Number Description Collet Size "D" Range "D1" "L" "J"Adj. Screw Coolant Style
KTI40 872141309 KTI40TS-CHE 25-45 ER25 3 -- 16 42 45 M16X2.0 AD Thru
KTI40 872141412 KTI40TS-CHE 32-60 ER32 3 -- 20 50 60 M18X1.5 AD Thru
KTI50 872142310 KTI50TS-CHE 25-50 ER25 3 -- 16 42 50 M16X2.0 AD Thru
KTI50 872142412 KTI50TS-CHE 32-60 ER32 3 -- 20 50 60 M18X1.5 AD Thru
KTI50 872142514 KTI50TS-CHE 40-70 ER40 4 -- 26 63 70 M22X1.5 AD Thru
KTI63 8721500M12 KTI63XMZ-CHE 11M-60 ER11 3--7 16 60 M8x1.25 AD Thru
KTI63 872150112 KTI63XMZ-CHE 16-60 ER16 3--10 28 60 M10X1.5 AD Thru
KTI63 8721501M12 KTI63XMZ-CHE 16M-60 ER16 3--10 22 60 M10X1.5 AD Thru
KTI63 872150212 KTI63XMZ-CHE 20-60 ER20 3--13 34 60 M12X1.75 AD Thru
KTI63 872150312 KTI63XMZ-CHE 25-60 ER25 3 -- 16 42 60 M16X2.0 AD Thru
KTI63 872150418 KTI63XMZ-CHE 32-90 ER32 3 -- 20 50 60 M18X1.5 AD Thru
KTI63 872150518 KTI63XMZ-CHE 40-90 ER40 4 -- 26 63 60 M22X1.5 AD Thru

GET IN TOUCH
WITH US!

SALES & INQUIRY
