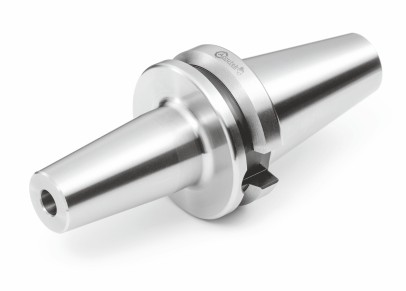

BT Shrink Fit Holders – Standard DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
BT30 94100316 BT30-SF 3-80 3 80 10 18 9 - AD Thru
BT30 94100416 BT30-SF 4-80 4 80 10 18 12 - AD Thru
BT30 94100516 BT30-SF 5-80 5 80 10 18 15 - AD Thru
BT30 94100616 BT30-SF 6-80 6 80 21 27 36 M5 AD Thru
BT30 94100816 BT30-SF 8-80 8 80 21 27 36 M6 AD Thru
BT30 94101016 BT30-SF 10-80 10 80 24 32 42 M8X1 AD Thru
BT30 94101216 BT30-SF 12-80 12 80 24 32 47 M10X1 AD Thru
BT30 94101616 BT30-SF 16-80 16 80 27 34 50 M12X1 AD Thru
BT30 94102016 BT30-SF 20-80 20 80 33 42 52 M16X1 AD Thru
BT40 94120318 BT40-SF 3-90 3 90 10 18 9 - AD Thru
BT40 94120418 BT40-SF 4-90 4 90 10 18 12 - AD Thru
BT40 94120518 BT40-SF 5-90 5 90 10 18 15 - AD Thru
BT40 94120618 BT40-SF 6-90 6 90 21 27 36 M5 AD Thru
BT40 94120818 BT40-SF 8-90 8 90 21 27 36 M6 AD Thru
BT40 94121018 BT40-SF 10-90 10 90 24 32 42 M8X1 AD Thru
BT40 94121218 BT40-SF 12-90 12 90 24 32 47 M10X1 AD Thru
BT40 94121618 BT40-SF 16-90 16 90 27 34 50 M12X1 AD Thru
BT40 94122018 BT40-SF 20-90 20 90 33 42 52 M16X1 AD Thru
BT40 94122520 BT40-SF 25-100 25 100 44 53 58 M16X1 AD Thru
BT40 94123220 BT40-SF 32-100 32 100 44 53 58 M16X1 AD Thru

BT Shrink Fit Holders – Long DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
BT40 94120324 BT40-SF 3-120 3 120 10 18 9 - AD Thru
BT40 94120424 BT40-SF 4-120 4 120 10 18 12 - AD Thru
BT40 94120524 BT40-SF 5-120 5 120 10 18 15 - AD Thru
BT40 94120624 BT40-SF 6-120 6 120 21 27 36 M5 AD Thru
BT40 94120824 BT40-SF 8-120 8 120 21 27 36 M6 AD Thru
BT40 94121024 BT40-SF 10-120 10 120 24 32 42 M8X1 AD Thru
BT40 94121224 BT40-SF 12-120 12 120 24 32 47 M10X1 AD Thru
BT40 94121624 BT40-SF 16-120 16 120 27 34 50 M12X1 AD Thru
BT40 94122024 BT40-SF 20-120 20 120 33 43 52 M16X1 AD Thru
BT40 94122524 BT40-SF 25-120 25 120 44 53 58 M16X1 AD Thru
BT40 94123224 BT40-SF 32-120 32 120 44 53 58 M16X1 AD Thru

BT Shrink Fit Holders – X-Long DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
BT40 94120332 BT40-SF 3-160 3 160 10 18 9 - AD Thru
BT40 94120432 BT40-SF 4-160 4 160 10 18 12 - AD Thru
BT40 94120532 BT40-SF 5-160 5 160 10 18 15 - AD Thru
BT40 94120632 BT40-SF 6-160 6 160 21 27 36 M5 AD Thru
BT40 94120832 BT40-SF 8-160 8 160 21 27 36 M6 AD Thru
BT40 94121032 BT40-SF 10-160 10 160 24 32 42 M8X1 AD Thru
BT40 94121232 BT40-SF 12-160 12 160 24 32 47 M10X1 AD Thru
BT40 94121632 BT40-SF 16-160 16 160 27 34 50 M12X1 AD Thru
BT40 94122032 BT40-SF 20-160 20 160 33 43 52 M16X1 AD Thru
BT40 94122532 BT40-SF 25-160 25 160 44 53 58 M16X1 AD Thru
BT40 94123232 BT40-SF 32-160 32 160 44 53 58 M16X1 AD Thru

BTP Face Contact AccuGrip™ Shrink Fit Holders



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Taper shank ground to AT3 accuracy (or better)

Bore Tolerance H6

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
BTP30 941060316 BTP30-SF 3-80 3 80 10 18 9 - AD Thru
BTP30 941060416 BTP30-SF 4-80 4 80 10 18 12 - AD Thru
BTP30 941060516 BTP30-SF 5-80 5 80 10 18 15 - AD Thru
BTP30 941060616 BTP30-SF 6-80 6 80 21 27 36 M5 AD Thru
BTP30 941060816 BTP30-SF 8-80 8 80 21 27 36 M6x1 AD Thru
BTP30 941061016 BTP30-SF 10-80 10 80 24 32 42 M8x1 AD Thru
BTP30 941061216 BTP30-SF 12-80 12 80 24 32 47 M10x1 AD Thru
BTP30 941061616 BTP30-SF 16-80 16 80 27 34 50 M12x1 AD Thru
BTP30 941062016 BTP30-SF 20-80 20 80 33 42 52 M16x1 AD Thru
BTP40 941080318 BTP40-SF 3-90 3 90 10 18 9 - AD Thru
BTP40 941080418 BTP40-SF 4-90 4 90 10 18 12 - AD Thru
BTP40 941080518 BTP40-SF 5-90 5 90 10 18 15 - AD Thru
BTP40 941080618 BTP40-SF 6-90 6 90 21 27 36 M5 AD Thru
BTP40 941080818 BTP40-SF 8-90 8 90 21 27 36 M6x1 AD Thru
BTP40 941081018 BTP40-SF 10-90 10 90 24 32 42 M8x1 AD Thru
BTP40 941081218 BTP40-SF 12-90 12 90 24 32 47 M10x1 AD Thru
BTP40 941081618 BTP40-SF 16-90 16 90 27 34 50 M12x1 AD Thru
BTP40 941082018 BTP40-SF 20-90 20 90 33 43 52 M16x1 AD Thru
BTP40 941082520 BTP40-SF 25-100 25 100 44 53 58 M16x1 AD Thru
BTP40 941083220 BTP40-SF 32-100 32 100 44 53 58 M16x1 AD Thru

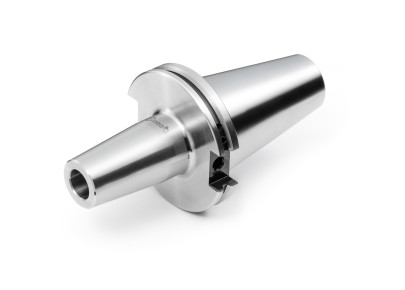

SK Shrink Fit Holders – Standard DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
SK40 94190319 SK40-SF 3-95 3 95 10 18 9 - AD Thru
SK40 94190419 SK40-SF 4-95 4 95 10 18 12 - AD Thru
SK40 94190519 SK40-SF 5-95 5 95 10 18 15 - AD Thru
SK40 94190619 SK40-SF 6-95 6 95 21 27 36 M5 AD Thru
SK40 94190819 SK40-SF 8-95 8 95 21 27 36 M6 AD Thru
SK40 94191019 SK40-SF 10-95 10 95 24 32 42 M8X1 AD Thru
SK40 94191219 SK40-SF 12-95 12 95 24 32 47 M10X1 AD Thru
SK40 94191419 SK40-SF 14-95 14 95 27 34 47 M10X1 AD Thru
SK40 94191619 SK40-SF 16-95 16 95 27 34 50 M12X1 AD Thru
SK40 94191819 SK40-SF 18-95 18 95 33 42 50 M12X1 AD Thru
SK40 94192019 SK40-SF 20-95 20 95 33 42 52 M16X1 AD Thru
SK40 94192520 SK40-SF 25-100 25 100 44 53 58 M16X1 AD Thru
SK40 94193220 SK40-SF 32-100 32 100 44 53 62 M16X1 AD Thru
SK50 94210619 SK50-SF 6-95 6 95 21 27 36 M5 AD Thru
SK50 94210819 SK50-SF 8-95 8 95 21 27 36 M6 AD Thru
SK50 94211019 SK50-SF 10-95 10 95 24 32 42 M8X1 AD Thru
SK50 94211219 SK50-SF 12-95 12 95 24 32 47 M10X1 AD Thru
SK50 94211419 SK50-SF 14-95 14 95 27 34 47 M10X1 AD Thru
SK50 94211619 SK50-SF 16-95 16 95 27 34 50 M12X1 AD Thru
SK50 94211819 SK50-SF 18-95 18 95 33 42 50 M12X1 AD Thru
SK50 94212019 SK50-SF 20-95 20 95 33 42 52 M16X1 AD Thru
SK50 94212521 SK50-SF 25-105 25 105 44 53 58 M16X1 AD Thru
SK50 94213221 SK50-SF 32-105 32 105 44 53 62 M16X1 AD Thru

SK Shrink Fit Holders – Long DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
SK40 94190324 SK40-SF 3-120 3 120 10 18 9 - AD Thru
SK40 94190424 SK40-SF 4-120 4 120 10 18 12 - AD Thru
SK40 94190524 SK40-SF 5-120 5 120 10 18 15 - AD Thru
SK40 94190624 SK40-SF 6-120 6 120 21 27 36 M5 AD Thru
SK40 94190824 SK40-SF 8-120 8 120 21 27 36 M6 AD Thru
SK40 94191024 SK40-SF 10-120 10 120 24 32 42 M8X1 AD Thru
SK40 94191224 SK40-SF 12-120 12 120 24 32 47 M10X1 AD Thru
SK40 94191424 SK40-SF 14-120 14 120 27 34 47 M10X1 AD Thru
SK40 94191624 SK40-SF 16-120 16 120 27 34 50 M12X1 AD Thru
SK40 94191824 SK40-SF 18-120 18 120 33 42 50 M12X1 AD Thru
SK40 94192024 SK40-SF 20-120 20 120 33 42 52 M16X1 AD Thru
SK40 94192524 SK40-SF 25-120 25 120 44 53 58 M16X1 AD Thru
SK40 94193224 SK40-SF 32-120 32 120 44 53 62 M16X1 AD Thru
SK50 94210624 SK50-SF 6-120 6 120 21 27 36 M5 AD Thru
SK50 94210824 SK50-SF 8-120 8 120 21 27 36 M6 AD Thru
SK50 94211024 SK50-SF 10-120 10 120 24 32 42 M8X1 AD Thru
SK50 94211224 SK50-SF 12-120 12 120 24 32 47 M10X1 AD Thru
SK50 94211424 SK50-SF 14-120 14 120 27 34 47 M10X1 AD Thru
SK50 94211624 SK50-SF 16-120 16 120 27 34 50 M12X1 AD Thru
SK50 94211824 SK50-SF 18-120 18 120 33 42 50 M12X1 AD Thru
SK50 94212024 SK50-SF 20-120 20 120 33 42 52 M16X1 AD Thru
SK50 94212524 SK50-SF 25-120 25 120 44 53 58 M16X1 AD Thru
SK50 94213224 SK50-SF 32-120 32 120 44 53 62 M16X1 AD Thru

SK Shrink Fit Holders – X-Long DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.005mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
SK40 94190332 SK40-SF 3-160 3 160 10 18 9 - AD Thru
SK40 94190432 SK40-SF 4-160 4 160 10 18 12 - AD Thru
SK40 94190532 SK40-SF 5-160 5 160 10 18 15 - AD Thru
SK40 94190632 SK40-SF 6-160 6 160 21 27 36 M5 AD Thru
SK40 94190832 SK40-SF 8-160 8 160 21 27 36 M6 AD Thru
SK40 94191032 SK40-SF 10-160 10 160 24 32 42 M8X1 AD Thru
SK40 94191232 SK40-SF 12-160 12 160 24 32 47 M10X1 AD Thru
SK40 94191432 SK40-SF 14-160 14 160 27 34 47 M10X1 AD Thru
SK40 94191632 SK40-SF 16-160 16 160 27 34 50 M12X1 AD Thru
SK40 94191832 SK40-SF 18-160 18 160 33 42 50 M12X1 AD Thru
SK40 94192032 SK40-SF 20-160 20 160 33 42 52 M16X1 AD Thru
SK40 94192532 SK40-SF 25-160 25 160 44 53 58 M16X1 AD Thru
SK40 94193232 SK40-SF 32-160 32 160 44 53 62 M16X1 AD Thru
SK50 94210632 SK50-SF 6-160 6 160 21 27 36 M5 AD Thru
SK50 94210832 SK50-SF 8-160 8 160 21 27 36 M6 AD Thru
SK50 94211032 SK50-SF 10-160 10 160 24 32 42 M8X1 AD Thru
SK50 94211232 SK50-SF 12-160 12 160 24 32 47 M10X1 AD Thru
SK50 94211432 SK50-SF 14-160 14 160 27 34 47 M10X1 AD Thru
SK50 94211632 SK50-SF 16-160 16 160 27 34 50 M12X1 AD Thru
SK50 94211832 SK50-SF 18-160 18 160 33 42 50 M12X1 AD Thru
SK50 94212032 SK50-SF 20-160 20 160 33 42 52 M16X1 AD Thru
SK50 94212532 SK50-SF 25-160 25 160 44 53 58 M16X1 AD Thru
SK50 94213232 SK50-SF 32-160 32 160 44 53 62 M16X1 AD Thru

SKP Face Contact AccuGrip™ Shrink Fit Holders



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Taper shank ground to AT3 accuracy (or better)

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
SKP40 941360319 SKP40-SF 3-95 3 95 10 18 9 - AD Thru
SKP40 941360419 SKP40-SF 4-95 4 95 10 18 12 - AD Thru
SKP40 941360519 SKP40-SF 5-95 5 95 10 18 15 - AD Thru
SKP40 941360619 SKP40-SF 6-95 6 95 21 27 36 M5 AD Thru
SKP40 941360819 SKP40-SF 8-95 8 95 21 27 36 M6x1 AD Thru
SKP40 941361019 SKP40-SF 10-95 10 95 24 32 42 M8x1 AD Thru
SKP40 941361219 SKP40-SF 12-95 12 95 24 32 47 M10x1 AD Thru
SKP40 941361419 SKP40-SF 14-95 14 95 27 34 47 M10x1 AD Thru
SKP40 941361619 SKP40-SF 16-95 16 95 27 34 50 M12x1 AD Thru
SKP40 941361819 SKP40-SF 18-95 18 95 33 42 50 M12x1 AD Thru
SKP40 941362019 SKP40-SF 20-95 20 95 33 42 52 M16x1 AD Thru
SKP40 941362520 SKP40-SF 25-100 25 100 44 53 58 M16x1 AD Thru
SKP40 941363220 SKP40-SF 32-100 32 100 44 53 62 M16x1 AD Thru
SKP50 941380619 SKP50-SF 6-95 6 95 21 27 36 M5 AD Thru
SKP50 941380819 SKP50-SF 8-95 8 95 21 27 36 M6x1 AD Thru
SKP50 941381019 SKP50-SF 10-95 10 95 24 32 42 M8x1 AD Thru
SKP50 941381219 SKP50-SF 12-95 12 95 24 32 47 M10x1 AD Thru
SKP50 941381419 SKP50-SF 14-95 14 95 27 34 47 M10x1 AD Thru
SKP50 941381619 SKP50-SF 16-95 16 95 27 34 50 M12x1 AD Thru
SKP50 941381819 SKP50-SF 18-95 18 95 33 42 50 M12x1 AD Thru
SKP50 941382019 SKP50-SF 20-95 20 95 33 42 52 M16x1 AD Thru
SKP50 941382521 SKP50-SF 25-105 25 105 44 53 58 M16x1 AD Thru
SKP50 941383221 SKP50-SF 32-105 32 105 44 53 62 M16x1 AD Thru

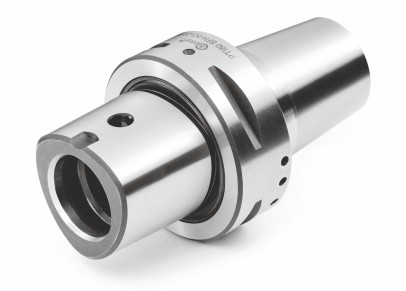

PTI Shrink Fit Holders – Standard DIN Length PTI50 PTI80



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
PTI 50 94680316 PTI50-SF 3-75 3 75 10 18 9 - AD Thru
PTI 50 94680416 PTI50-SF 4-75 4 75 10 18 12 - AD Thru
PTI 50 94680516 PTI50-SF 5-75 5 75 10 18 15 - AD Thru
PTI 50 94680616 PTI50-SF 6-75 6 75 21 27 36 M5 AD Thru
PTI 50 94680816 PTI50-SF 8-75 8 75 21 27 36 M6x1 AD Thru
PTI 50 94681016 PTI50-SF 10-75 10 75 24 32 42 M8x1 AD Thru
PTI 50 94681216 PTI50-SF 12-75 12 75 24 32 47 M10x1 AD Thru
PTI 63 94690316 PTI63-SF 3-80 3 80 10 18 9 - AD Thru
PTI 63 94690416 PTI63-SF 4-80 4 80 10 18 12 - AD Thru
PTI 63 94690516 PTI63-SF 5-80 5 80 10 18 15 - AD Thru
PTI 63 94690616 PTI63-SF 6-80 6 80 21 27 36 M5 AD Thru
PTI 63 94690816 PTI63-SF 8-80 8 80 21 27 36 M6x1 AD Thru
PTI 63 94691017 PTI63-SF 10-85 10 80 24 32 42 M8x1 AD Thru
PTI 63 94691217 PTI63-SF 12-85 12 80 24 32 47 M10x1 AD Thru
PTI 63 94691618 PTI63-SF 16-90 16 85 27 34 50 M12x1 AD Thru
PTI 63 94692019 PTI63-SF 20-95 20 85 33 42 50 M16x1 AD Thru
PTI 80 94700618 PSC80-SF 6-90 6 90 21 27 36 M5 AD Thru
PTI 80 94700818 PSC80-SF 8-90 8 90 21 27 36 M6x1 AD Thru
PTI 80 94701018 PSC80-SF 10-90 10 90 24 32 42 M8x1 AD Thru
PTI 80 94701219 PSC80-SF 12-95 12 95 24 32 47 M10x1 AD Thru
PTI 80 94701619 PSC80-SF 16-95 16 95 27 42 50 M12x1 AD Thru
PTI 80 94702019 PSC80-SF 20-95 20 95 33 42 50 M16x1 AD Thru

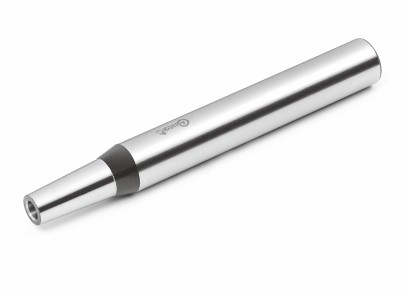

Straight Shank Extension AccuGrip™ Shrink Fit Holders



FEATURES

T.I.R. < 0.003mm

Shank Tolerance H6

Catalog Number Description "D1" "D2" "D3" "L" "L1" "A"
STRAIGHT SHANK 16 94460322 SSH 16-SF 03-110 16 3 9 110 20 3
STRAIGHT SHANK 16 94460422 SSH 16-SF 04-110 16 4 10 110 20 3
STRAIGHT SHANK 16 94460522 SSH 16-SF 05-110 16 5 11 110 25 3
STRAIGHT SHANK 16 94460622 SSH 16-SF 06-110 16 6 12 110 36 3
STRAIGHT SHANK 16 94460822 SSH 16-SF 08-110 16 8 14 110 36 3
STRAIGHT SHANK 16 94461022 SSH 16-SF 10-110 16 10 16 110 42 3
STRAIGHT SHANK 16 94461222 SSH 16-SF 12-110 16 12 18 110 47 3
STRAIGHT SHANK 20 94500322 SSH 20-SF 03-110 20 3 9 110 20 3
STRAIGHT SHANK 20 94500422 SSH 20-SF 04-110 20 4 10 110 20 3
STRAIGHT SHANK 20 94500522 SSH 20-SF 05-110 20 5 11 110 25 3
STRAIGHT SHANK 20 94500622 SSH 20-SF 06-110 20 6 12 110 36 3
STRAIGHT SHANK 20 94500822 SSH 20-SF 08-110 20 8 14 110 36 3
STRAIGHT SHANK 20 94501022 SSH 20-SF 10-110 20 10 16 110 42 3
STRAIGHT SHANK 20 94501222 SSH 20-SF 12-110 20 12 18 110 47 3
STRAIGHT SHANK 16 94460340 SSH 16-SF 03-200 16 3 9 200 20 3
STRAIGHT SHANK 16 94460440 SSH 16-SF 04-200 16 4 10 200 20 3
STRAIGHT SHANK 16 94460540 SSH 16-SF 05-200 16 5 11 200 25 3
STRAIGHT SHANK 16 94460640 SSH 16-SF 06-200 16 6 12 200 36 3
STRAIGHT SHANK 16 94460840 SSH 16-SF 08-200 16 8 14 200 36 3
STRAIGHT SHANK 16 94461040 SSH 16-SF 10-200 16 10 16 200 42 3
STRAIGHT SHANK 16 94461240 SSH 16-SF 12-200 16 12 18 200 47 3
STRAIGHT SHANK 20 94500340 SSH 20-SF 03-200 20 3 9 200 20 3
STRAIGHT SHANK 20 94500440 SSH 20-SF 04-200 20 4 10 200 20 3
STRAIGHT SHANK 20 94500540 SSH 20-SF 05-200 20 5 11 200 25 3
STRAIGHT SHANK 20 94500640 SSH 20-SF 06-200 20 6 12 200 36 3
STRAIGHT SHANK 20 94500840 SSH 20-SF 08-200 20 8 14 200 36 3
STRAIGHT SHANK 20 94501040 SSH 20-SF 10-200 20 10 16 200 42 3
STRAIGHT SHANK 20 94501240 SSH 20-SF 12-200 20 12 18 200 47 3

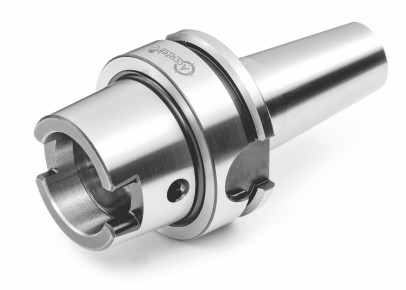

HSK63A & HSK100A Shrink Fit Holders – Standard DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
HSK 63A 9474A0316 HSK-63A-SF 3-80 3 80 10 18 9 - AD Thru
HSK 63A 9474A0416 HSK-63A-SF 4-80 4 80 10 18 12 - AD Thru
HSK 63A 9474A0516 HSK-63A-SF 5-80 5 80 10 18 15 - AD Thru
HSK 63A 9474A0616 HSK-63A-SF 6-80 6 80 21 27 36 M5 AD Thru
HSK 63A 9474A0816 HSK-63A-SF 8-80 8 80 21 27 36 M6 AD Thru
HSK 63A 9474A1017 HSK-63A-SF 10-85 10 85 24 32 42 M8X1 AD Thru
HSK 63A 9474A1218 HSK-63A-SF 12-90 12 90 24 32 47 M10X1 AD Thru
HSK 63A 9474A1418 HSK-63A-SF 14-90 14 90 27 34 47 M10X1 AD Thru
HSK 63A 9474A1618 HSK-63A-SF 16-90 16 90 27 34 50 M12X1 AD Thru
HSK 63A 9474A1819 HSK-63A-SF 18-95 18 95 33 42 50 M12X1 AD Thru
HSK 63A 9474A2020 HSK-63A-SF 20-100 20 100 33 42 52 M16X1 AD Thru
HSK 100A 9476A0617 HSK100A-SF 6-85 6 85 21 27 36 M5 AD Thru
HSK 100A 9476A0817 HSK100A-SF 8-85 8 85 21 27 36 M6 AD Thru
HSK 100A 9476A1018 HSK100A-SF 10-90 10 90 24 32 42 M8X1 AD Thru
HSK 100A 9476A1219 HSK100A-SF 12-95 12 95 24 32 47 M10X1 AD Thru
HSK 100A 9476A1419 HSK100A-SF 14-95 14 95 27 34 47 M10X1 AD Thru
HSK 100A 9476A1620 HSK100A-SF 16-100 16 100 27 34 50 M12X1 AD Thru
HSK 100A 9476A1820 HSK100A-SF 18-100 18 100 33 42 50 M12X1 AD Thru
HSK 100A 9476A2021 HSK100A-SF 20-105 20 105 33 42 52 M16X1 AD Thru
HSK 100A 9476A2523 HSK100A-SF 25-115 25 115 44 53 58 M16X1 AD Thru
HSK 100A 9476A3224 HSK100A-SF 32-120 32 120 44 53 62 M16X1 AD Thru

HSK63A Shrink Fit Holders – Long DIN Length HSK63A



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
HSK 63A 9474A0324 HSK-63A-SF 3-120 3 120 10 18 9 - AD Thru
HSK 63A 9474A0424 HSK-63A-SF 4-120 4 120 10 18 12 - AD Thru
HSK 63A 9474A0524 HSK-63A-SF 5-120 5 120 10 18 15 - AD Thru
HSK 63A 9474A0624 HSK-63A-SF 6-120 6 120 21 27 36 M5 AD Thru
HSK 63A 9474A0824 HSK-63A-SF 8-120 8 120 21 27 36 M6 AD Thru
HSK 63A 9474A1024 HSK-63A-SF 10-120 10 120 24 32 42 M8X1 AD Thru
HSK 63A 9474A1224 HSK-63A-SF 12-120 12 120 24 32 47 M10X1 AD Thru
HSK 63A 9474A1424 HSK-63A-SF 14-120 14 120 27 34 47 M10X1 AD Thru
HSK 63A 9474A1624 HSK-63A-SF 16-120 16 120 27 34 50 M12X1 AD Thru
HSK 63A 9474A1824 HSK-63A-SF 18-120 18 120 33 42 50 M12X1 AD Thru
HSK 63A 9474A2024 HSK-63A-SF 20-120 20 120 33 42 52 M16X1 AD Thru
HSK 63A 9474A2524 HSK-63A-SF 25-120 25 120 44 53 58 M16X1 AD Thru
HSK 63A 9474A3224 HSK-63A-SF 32-120 32 120 44 53 62 M16X1 AD Thru

HSK63A Shrink Fit Holders – X-Long DIN Length HSK63A



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
HSK 63A 9474A0332 HSK-63A-SF 3-160 3 160 10 18 9 - AD Thru
HSK 63A 9474A0432 HSK-63A-SF 4-160 4 160 10 18 12 - AD Thru
HSK 63A 9474A0532 HSK-63A-SF 5-160 5 160 10 18 15 - AD Thru
HSK 63A 9474A0632 HSK-63A-SF 6-160 6 160 21 27 36 M5 AD Thru
HSK 63A 9474A0832 HSK-63A-SF 8-160 8 160 21 27 36 M6 AD Thru
HSK 63A 9474A1032 HSK-63A-SF 10-160 10 160 24 32 42 M8X1 AD Thru
HSK 63A 9474A1232 HSK-63A-SF 12-160 12 160 24 32 47 M10X1 AD Thru
HSK 63A 9474A1432 HSK-63A-SF 14-160 14 160 27 34 47 M10X1 AD Thru
HSK 63A 9474A1632 HSK-63A-SF 16-160 16 160 27 34 50 M12X1 AD Thru
HSK 63A 9474A1832 HSK-63A-SF 18-160 18 160 33 42 50 M12X1 AD Thru
HSK 63A 9474A2032 HSK-63A-SF 20-160 20 160 33 42 52 M16X1 AD Thru
HSK 63A 9474A2532 HSK-63A-SF 25-160 25 160 44 53 58 M16X1 AD Thru
HSK 63A 9474A3232 HSK-63A-SF 32-160 32 160 44 53 62 M16X1 AD Thru

HSK63F Shrink Fit Holders – Standard DIN Length



FEATURES

Balanced to G2.5 @ 25,000 RPM

T.I.R. < 0.003mm

Catalog Number Description "D1" "A" "D2" "D3" "L1" g Coolant Style
HSK 63F 9474F0316 HSK-63F-SF 3-80 3 80 15 20 20 - AD Thru
HSK 63F 9474F0416 HSK-63F-SF 4-80 4 80 15 20 20 - AD Thru
HSK 63F 9474F0516 HSK-63F-SF 5-80 5 80 15 20 20 - AD Thru
HSK 63F 9474F0616 HSK-63F-SF 6-80 6 80 21 27 36 M5 AD Thru
HSK 63F 9474F0816 HSK-63F-SF 8-80 8 80 21 27 36 M6 AD Thru
HSK 63F 9474F1017 HSK-63F-SF 10-85 10 85 24 32 42 M8X1 AD Thru
HSK 63F 9474F1218 HSK-63F-SF 12-90 12 90 24 32 47 M10X1 AD Thru
HSK 63F 9474F1418 HSK-63F-SF 14-90 14 90 27 34 47 M10X1 AD Thru
HSK 63F 9474F1618 HSK-63F-SF 16-90 16 90 27 34 50 M12X1 AD Thru
HSK 63F 9474F1819 HSK-63F-SF 18-95 18 95 33 42 50 M12X1 AD Thru
HSK 63F 9474F2020 HSK-63F-SF 20-100 20 100 33 42 52 M16X1 AD Thru

GET IN TOUCH
WITH US!

SALES & INQUIRY
