• JACOB TAPER HOLDERS

HOME >> CNC Tool Holders >> JACOB TAPER HOLDERS
  • BT
  • BTP
  • SK
  • SKP

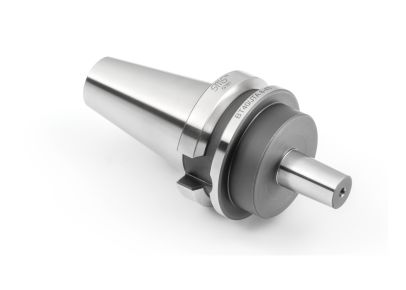

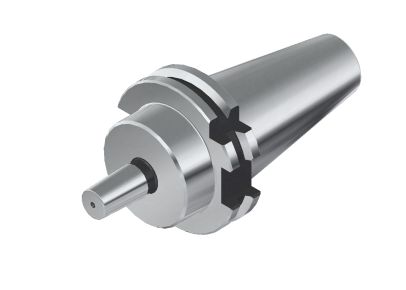

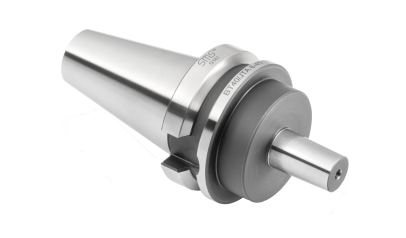

BT JACOB TAPER HOLDERS



Catalog Number Description JT TAPER NO. L ØD ØC
BT40 88412109 BT40-JTA 1-45 1 45 9.754 30
BT40 88412209 BT40-JTA 2-45 2 45 14.199 30
BT40 88412309 BT40-JTA 3-45 3 45 20.599 30
BT40 88412409 BT40-JTA 4-45 4 45 28.550 30
BT40 88412609 BT40-JTA 6-45 6 45 17.170 30
BT40 884123309 BT40-JTA 33-45 33 45 15.850 30
BT50 88414109 BT50-JTA 1-45 1 45 9.754 30
BT50 88414209 BT50-JTA 2-45 2 45 14.199 30
BT50 88414309 BT50-JTA 3-45 3 45 20.599 30
BT50 88414409 BT50-JTA 4-45 4 45 28.550 30
BT50 88414609 BT50-JTA 6-45 6 45 17.170 30
BT50 884143309 BT50- JTA 33-45 33 45 15.850 30

BTP JACOB TAPER HOLDERS



Catalog Number Description JT TAPER NO. L ØD ØC
BTP40 884108109 BTP40-JTA 1-45 1 45 9.754 30
BTP40 884108209 BTP40-JTA 2-45 2 45 14.199 30
BTP40 884108309 BTP40-JTA 3-45 3 45 20.599 30
BTP40 884108409 BTP40-JTA 4-45 4 45 28.550 30
BTP40 884108609 BTP40-JTA 6-45 6 45 17.170 30
BTP40 8841083309 BTP40-JTA 33-45 33 45 15.850 30
BTP50 884110109 BTP50-JTA 1-45 1 45 9.754 30
BTP50 884110209 BTP50-JTA 2-45 2 45 14.199 30
BTP50 884110309 BTP50-JTA 3-45 3 45 20.599 30
BTP50 884110409 BTP50-JTA 4-45 4 45 28.550 30
BTP50 884110609 BTP50-JTA 6-45 6 45 17.170 30
BTP50 8841103309 BTP50- JTA 33-45 33 45 15.850 30

SK JACOB TAPER HOLDERS



Catalog Number Description JT TAPER NO. L ØD ØC
SK40 88419109 SK40-JTA 1-45 1 45 9.754 44.45
SK40 88419209 SK40-JTA 2-45 2 45 14.199 44.45
SK40 88419309 SK40-JTA 3-45 3 45 20.599 44.45
SK40 88419409 SK40-JTA 4-45 4 45 28.550 44.45
SK40 88419609 SK40-JTA 6-45 6 45 17.170 44.45
SK40 884193309 SK40-JTA 33-45 33 45 15.850 44.45
SK50 88421109 SK50-JTA 1-45 1 45 9.754 44.45
SK50 88421209 SK50-JTA 2-45 2 45 14.199 44.45
SK50 88421309 SK50-JTA 3-45 3 45 20.599 44.45
SK50 88421409 SK50-JTA 4-45 4 45 28.550 44.45
SK50 88421609 SK50-JTA 6-45 6 45 17.170 44.45
SK50 884213309 SK50-JTA 33-45 33 45 15.850 44.45

SKP JACOB TAPER HOLDERS



Catalog Number Description JT TAPER NO. L ØD ØC
SKP40 884126109 SKP40-JTA 1-45 1 45 9.754 44.45
SKP40 884126209 SKP40-JTA 2-45 2 45 14.199 44.45
SKP40 884126309 SKP40-JTA 3-45 3 45 20.599 44.45
SKP40 884126409 SKP40-JTA 4-45 4 45 28.550 44.45
SKP40 884126609 SKP40-JTA 6-45 6 45 17.170 44.45
SKP40 8841263309 SKP40-JTA 33-45 33 45 15.850 44.45
SKP50 884128109 SKP50-JTA 1-45 1 45 9.754 70
SKP50 884128209 SKP50-JTA 2-45 2 45 14.199 70
SKP50 884128309 SKP50-JTA 3-45 3 45 20.599 70
SKP50 884128409 SKP50-JTA 4-45 4 45 28.550 70
SKP50 884128609 SKP50-JTA 6-45 6 45 17.170 70
SKP50 8841283309 SKP50-JTA 33-45 33 45 15.850 70
