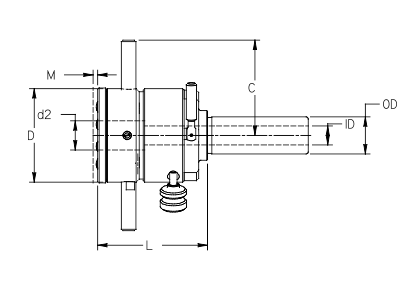

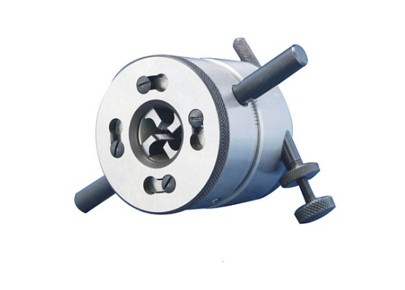

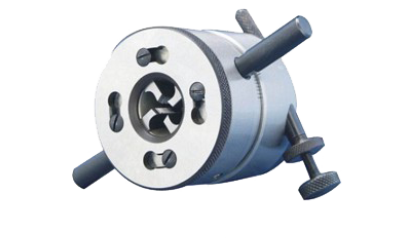

SELF OPENING DIE - HEAD (MODEL SDH)



Catalog Number Model Cutting Range Ø D L ØC Ød2 M O.D. I.D.
25158038 SDH-1 M2 - M8 (3/32" - 5/16") 48 58 48 10 3.5 5/8" 3/8"
25120038 SDH-1 M2 - M8 (3/32" - 5/16") 48 58 48 10 3.5 20 MM 3/8"
25210058 SDH-2 M4 - M14 (3/16" - 9/16") 65 78 42 17 4.5 1" 5/8"
25230058 SDH-2 M4 - M14 (3/16" - 9/16") 65 78 42 17 4.5 30 MM 5/8"
25315024 SDH-3 M6 - M18 (1/4" - 3/4") 88 99.5 56 24 5 1 1/2" 24 MM
25340024 SDH-3 M6 - M18 (1/4" - 3/4") 88 99.5 56 24 5 40 MM 24 MM
25415116 SDH-4 M10 - M24 (3/8" - 1") 102 109 63 34 5 1 1/2" 1 1/16"
25440116 SDH-4 M10 - M24 (3/8" - 1") 102 109 63 34 5 40 MM 1 1/16"
25554138 SDH-5 M12 - M30 (1/2" - 1 1/4") 120 126 72 36 5.5 2 1/8" 1 3/8"
25560138 SDH-5 M12 - M30 (1/2" - 1 1/4") 120 126 72 36 5.5 60 MM 1 3/8"
SPECIAL SHANK MANUFACTURING ON YOUR REQUEST

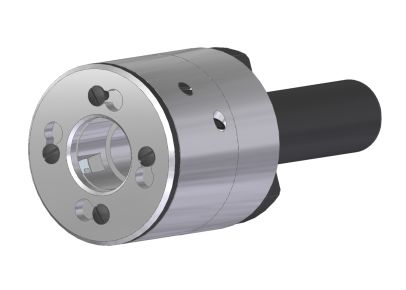

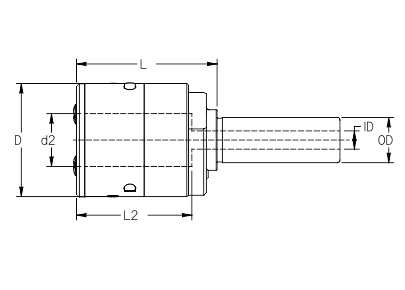

REVOLVING / STATIONARY DIE - HEAD (MODEL SD)



Catalog Number Model STRAIGHT THREAD Ø D Ød2 L L2 O.D. I.D.
885158038 SD-1 M2 - M8 (1/16" - 5/16") 46 12.5 49 24 5/8" 3/8"
885120038 SD-1 M2 - M8 (1/16" - 5/16") 46 12.5 49 24 20 MM 3/8"
885210058 SD-2 M3 - M14 (1/8" - 9/16") 64 22 67 32.5 1" 5/8"
885230058 SD-2 M3 - M14 (1/8" - 9/16") 64 22 67 32.5 30 MM 5/8"
885315024 SD-3 M4 - M18 (3/16" - 3/4") 88 24 86 21 1 1/2" 24 MM
885340024 SD-3 M4 - M18 (3/16" - 3/4") 88 24 86 21 40 MM 24 MM
885415116 SD-4 M6 - M24 (1/4" - 1") 102 37 88 42 1 1/2" 1 1/16"
885440116 SD-4 M6 - M24 (1/4" - 1") 102 37 88 42 40 MM 1 1/16"
885554138 SD-5 M10 - M30 (3/8" - 1 1/4") 117 42 8 49.5 2 1/8" 1 3/8"
885560138 SD-5 M10 - M30 (3/8" - 1 1/4") 117 42 8 49.5 60 MM 1 3/8"
SPECIAL SHANK MANUFACTURING ON YOUR REQUEST

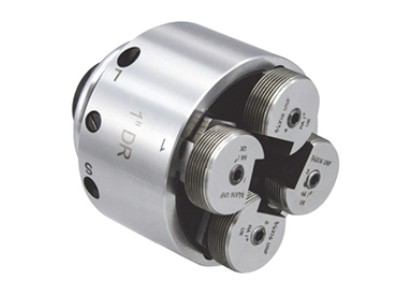

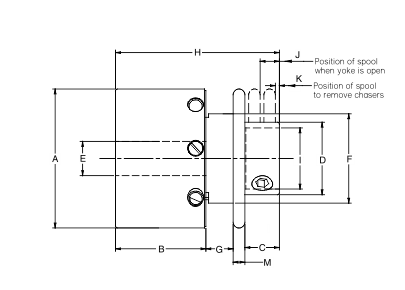

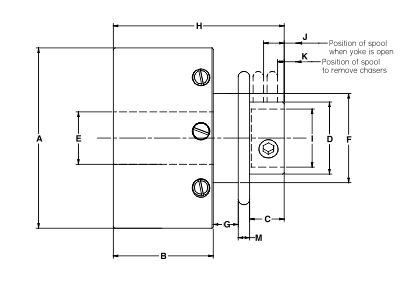

SELF OPENING DIE - HEAD (MODEL DR)



Catalog Number Model STRAIGHT THREAD Ø A B C Ø D Ø E Ø F G H Ø I J K M
8850267014 3/8" M4 - M10 (3/16" - 3/8" ) 67 44 27 25 14 35 10 71 14 22 12 5
8850373024 9/16" M6 - M14 (1/4" - 9/16") 73 48 18 38 16 47 14 66 24 12 1 6
8850510328 1" M6 - M20 (1/4" - 13/16") 103 57 20 38 27 51 14 77 28 12 1 6
8850712428 1-5/8" M12 - M28 (1/2" - 1-5/8") 124 57 23 70 43 89 19 80 28 15 1 6

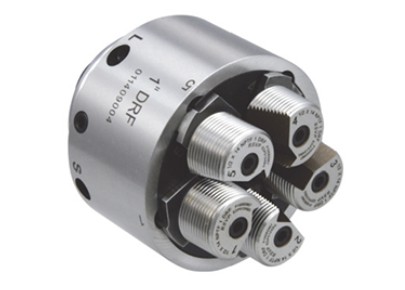

SELF OPENING DIE - HEAD (MODEL DRF)



Catalog Number Model STRAIGHT THREAD Ø A B C Ø D Ø E Ø F G H Ø I J K M
8850910324 1" M10 - M20 (7/16" - 13/16") 103 57 20 38 27 51 14 93 24 14 1 6
8851012428 1-5/8" M12 - M42 (1/2" - 1-5/8") 124 57 23 70 43 89 19 106 28 15 1 6
8851115244 2-3/8" M24 - M60 (1" - 2-3/8") 152 65 18 76 36 98 19 109 44 8 1 6

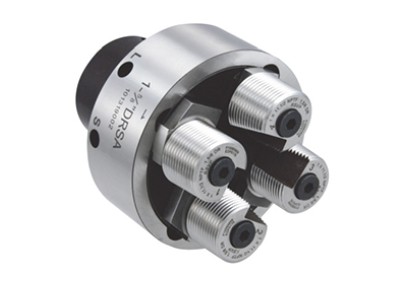

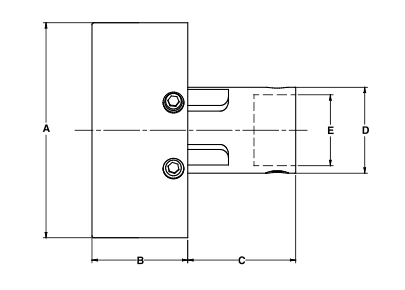

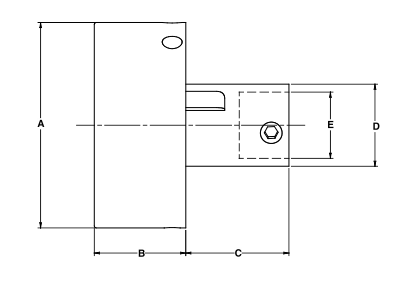

REVOLVING DIE - HEADS FOR CNC (MODEL DRSA)



Catalog Number Model STRAIGHT THREAD Ø A B C Ø D Ø E
8851273023 9/16" M6 - M14 (1/4" - 9/16") 73 37 49 38 23
8851810328 1" M6 - M20 (1/4" - 13/16") 103 46 51 41 28
8851912428 1-5/8" M12 - M28 (1/2" - 1-1/16") 124 48 60 70 28

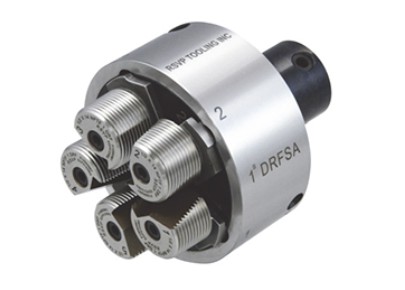

REVOLVING DIE - HEADS FOR CNC (MODEL DRFSA)



Catalog Number Model STRAIGHT THREAD Ø A B C Ø D Ø E
8853210328 1" M6 - M20 (1/4" - 13/16") 103 47 51 41 28
8853312428 1-5/8" M12 - M28 (1/2" - 1-1/16") 124 48 60 70 28
8853415244 2-3/8" M26 - M60 (1" - 2-3/8") 152 65 95 70 44

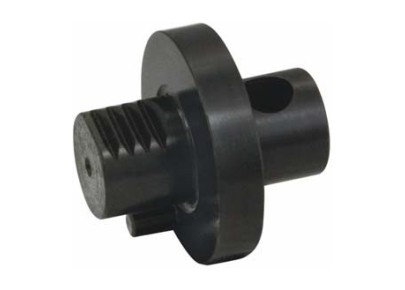

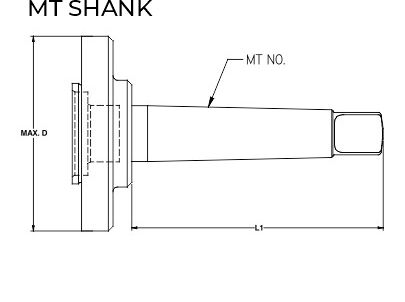

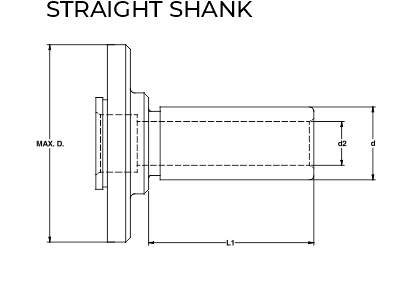

SPECIAL SHANKS



Catelog Number SHANK ODERING CODE Shank Size Ø d2 MAX. Ø D Total L1
88520428 0211 3/4" 3/8" 34
88520429 0212 1" 5/8" 34
88520431 0214 MT1 62
88520432 0215 MT2 75
88520433 0220 5/8" 3/8" 62 69
88520434 0221 3/4" 9/16' 62 69
88520436 0223 1 1/4" 7/8" 62 69
88520437 0224 25 MM 5/8" 62 69
88520439 0226 MT2 62 75
88520440 0227 MT3 62 94
88520441 0228 MT4 62 117.5
88520442 0229 MT5 62 149.5
88520443 0230 3/4" 9/16" 84 75
88520444 0231 1" 9/16" 84 75
88520445 0232 1 1/4" 7/8" 84 75
88520446 0233 2 1/8" 1 1/16" 84 75
88520449 0236 MT2 84 94
88520450 0237 MT3 84 94
88520451 0238 MT4 84 117.5
88520452 0239 MT5 84 149.5
88520453 0240 1" 9/16" 97 82
88520456 0243 MT2 97 75
88520457 0244 MT3 97 94
88520458 0245 MT4 97 117.5
88520459 0246 MT5 97 149.5
88520460 0250 1 1/2" 3/4" 111 90
88520461 0251 2" 1 1/4" 111 90
88520462 0252 1 1/4" 7/8" 111 94
88520463 0253 1 3/4" 1 1/16" 111 94
88520466 0256 MT2 111 75
88520467 0257 MT3 111 94
88520468 0258 MT4 111 117.5
88520469 0259 MT5 111 149.5

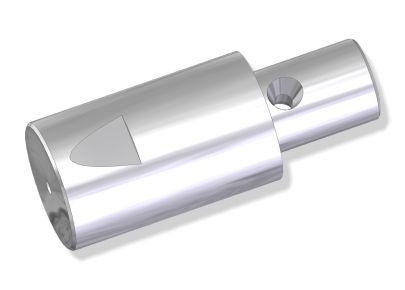

STRAIGHT MODULAR SHANK



Catelog Number SHANK ODERING CODE Model Ø A Ø D L
88520470 0110 9/16"DR , DRSA 23 25 46
88520471 0120 1" DR , DRSA, DRFSA 28 25 46
88520472 0117 1 5/8"DR , DRF 28 38 74

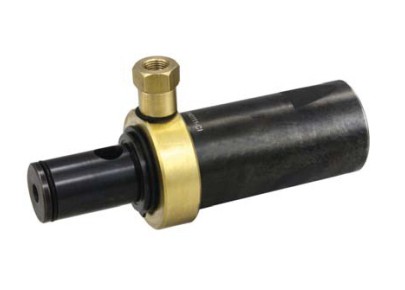

STRAIGHT COOLANT MODULAR SHANK



Catelog Number SHANK ODERING CODE Model Ø A B C Ø D L
88520473 0110-CI 9/16"DR , DRSA 23 44 2 25 46
88520474 0120-CI 1" DR , DRSA, DRFSA 28 44 2 25 46
88520475 0117-CI 1 5/8"DR , DRF 28 44 2 38 74

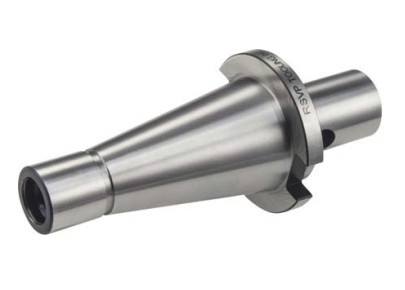

MODULAR SHANK (MODEL NMTB 40)



Catelog Number SHANK ODERING CODE Model Ø A
88520486 0143 9/16"DR , DRSA 23
88520487 131 1" DR , DRSA, DRFSA, 1 5/8"DR , DRF 28

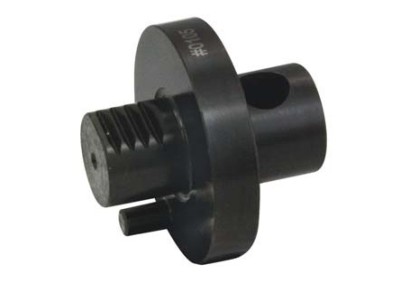

MODULAR SHANK (MODEL VDI 20)



Catelog Number SHANK ODERING CODE Model Ø A
88520494 0105 9/16"DR , DRSA 23
88520495 0105-A 1" DR , DRSA, DRFSA, 1 5/8"DR , DRF 28

MODULAR SHANK (MODEL VDI 25)



Catelog Number SHANK ODERING CODE Model Ø A
88520496 0106 9/16"DR , DRSA 23
88520497 0106-A 1" DR , DRSA, DRFSA, 1 5/8"DR , DRF 28
