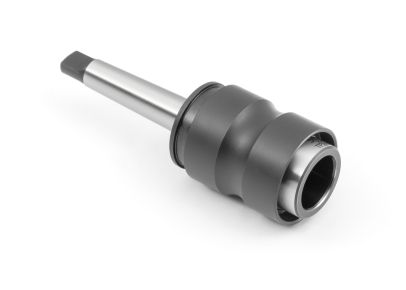

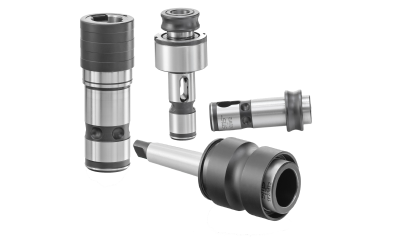

UNIVERSAL QUICK CHANGE DRILLING CHUCKS



Catalog Number Description MT NO. L SUITABLE ADAPTOR KD/KF/KT ØD ØD1
10001113 TF1/MT1 1 65.5 SIZE 1 33 18
10002215 TF2/MT2 2 75 SIZE 2 48 26
10003215 TF2/MT3 3 76 SIZE 2 48 26
10003317 TF3/MT3 3 86 SIZE 3 61 34
10004317 TF3/MT4 4 86 SIZE 3 61 34
10004424 TF4/MT4 4 120.5 SIZE 4 82 46
10005424 TF4/MT5 5 120.5 SIZE 4 82 46
10005526 TF5/MT5 5 130.5 SIZE 5 100 60
10006526 TF5/MT6 6 133 SIZE 5 100 60

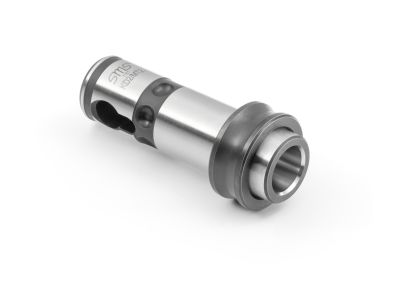

UNIVERSAL QUICK CHANGE DRILLING ADAPTOR



Catalog Number Description FEMALE MT NO SUITABLE FOR CHUCK ØD1 ØD3 L
11101103 KD1-MT1 1 TF 1 18 28 15
11101203 KD2-MT1 1 TF 2 26 37 18
11102206 KD2-MT2 2 TF 2 26 37 30
11101303 KD3-MT1 1 TF 3 34 46 15
11102305 KD3-MT2 2 TF 3 34 46 25
11103308 KD3-MT3 3 TF 3 34 46 43
11101404 KD4-MT1 1 TF 4 46 58 22
11102406 KD4-MT2 2 TF 4 46 58 22
11103406 KD4-MT3 3 TF 4 46 58 31
11104411 KD4-MT4 4 TF 4 46 58 55
11102505 KD5-MT2 2 TF 5 60 73 25
11103505 KD5-MT3 3 TF 5 60 73 25
11104506 KD5-MT4 4 TF 5 60 73 31
11105513 KD5-MT5 5 TF 5 60 73 68

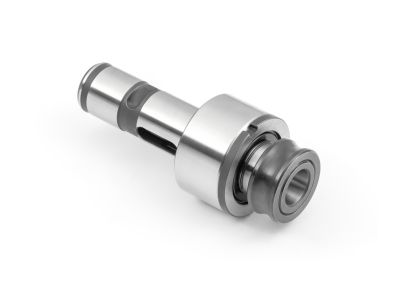

UNIVERSAL QUICK CHANGE FLOATING ADAPTOR



Catalog Number Description SUITABLE SHANK FEMALE MT NO. FLOAT ACTION ØD ØD3 L
11301210 KF2/MT1 TF 2 1 1 50 26 54
11302213 KF2/MT2 TF 2 2 1 50 26 63
11302312 KF3/MT2 TF 3 2 1 67 34 60.5
11303314 KF3/MT3 TF 3 3 1 67 34 80
11303414 KF4/MT3 TF 4 3 1.5 78 46 71.5
11304419 KF4/MT4 TF 4 4 1.5 78 46 96.5
11304518 KF5/MT4 TF 5 4 2 102 60 91.5
11305524 KF5/MT5 TF 5 5 2 102 60 118.5

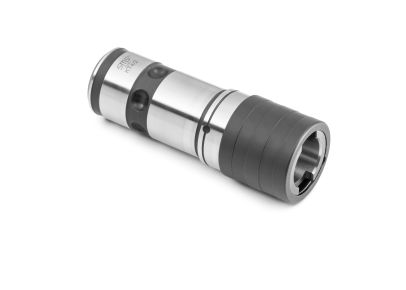

UNIVERSAL QUICK CHANGE TAPPING CHUCKS WITH LENGTH COMPENSATION ON COMPRESSION AND EXPANSION



Catalog Number Description SUITABLE ADAPTOR QA-QASB FOR TAPS SUITABLE FOR CHUCK Comp. Expand. ØD ØD1 ØD2 L
11401209 KT 2/1 SIZE 1 M3-M12 TF 2 7.5 7.5 36 26 19 45
11402213 KT 2/2 SIZE 2 M8-M20 TF 2 12.5 12.5 53 26 31 66
11401309 KT 3/1 SIZE 1 M3-M12 TF 3 7.5 7.5 36 34 19 45
11402314 KT 3/2 SIZE 2 M8-M20 TF 3 12.5 12.5 53 34 31 70.5
11403324 KT 3/3 SIZE 3 M14-M33 TF 3 20 20 78 34 48 122
11401409 KT 4/1 SIZE 1 M3-M12 TF 4 7.5 7.5 36 46 19 45
11402413 KT 4/2 SIZE 2 M8-M20 TF 4 12.5 12.5 53 46 31 65.5
11403421 KT 4/3 SIZE 3 M14-M33 TF 4 20 20 78 46 48 107
11404425 KT 4/4 SIZE 4 M22-M48 TF 4 22.5 22.5 96 46 60 128
11402513 KT 5/2 SIZE 2 M8-M20 TF 5 12.5 12.5 53 60 31 65.5
11403519 KT 5/3 SIZE 3 M14-M33 TF 5 20 20 78 60 48 98.5
11404522 KT 5/4 SIZE 4 M22-M48 TF 5 22.5 22.5 96 60 60 109.5
