SK Blanks



FEATURES

Shank Harness 54-56 HRC

Shank Harness 28-32 HRC

Taper Shank ground to AT3 Accurecy (or better)

Catalog Number Description "D" "D1" "A" "A1" "D2"
SK40 A119040150 SK40 Blank Dia. 40-150 44.45 40 150 – --
SK40 A119040200 SK40 Blank Dia. 40-200 44.45 40 200 -- --
SK40 A119063150 SK40 Blank Dia. 63-150 44.45 63 150 35 44.45
SK40 A119063200 SK40 Blank Dia. 63-200 44.45 63 200 35 44.45
SK40 A119090150 SK40 Blank Dia. 90-150 44.45 90 150 35 44.45
SK40 A119090200 SK40 Blank Dia. 90-200 44.45 90 200 35 44.45
SK50 A121075150 SK50 Blank Dia. 75-150 69.85 75 150 35 69.85
SK50 A121075250 SK50 Blank Dia. 75-250 69.85 75 250 35 69.85
SK50 A121100175 SK50 Blank Dia. 100-175 69.85 100 175 35 69.85
SK50 A121100300 SK50 Blank Dia. 100-300 69.85 100 300 35 69.85
SK50 A121120200 SK50 Blank Dia. 120-200 69.85 120 200 35 69.85
SK50 A121120300 SK50 Blank Dia. 120-300 69.85 120 300 35 69.85

SKP Face Contact Blank



FEATURES

Shank Harness 54-56 HRC

Shank Harness 28-32 HRC

Taper Shank ground to AT3 Accurecy (or better)

Catalog Number Description "D" "D1" "A" "A1" "D2"
SKP40 A1126040150 SKP40 Blank Dia 40-150 44.45 40 150 -- –
SKP40 A1126040200 SKP40 Blank Dia 40-200 44.45 40 200 – –
SKP40 A1126063150 SKP40 Blank Dia 63-150 44.45 63 150 35 44.45
SKP40 A1126063200 SKP40 Blank Dia 63-200 44.45 63 200 35 44.45
SKP40 A1126090150 SKP40 Blank Dia 90-150 44.45 90 150 35 44.45
SKP40 A1126090200 SKP40 Blank Dia 90-200 44.45 90 200 35 44.45
SKP50 A1126075150 SKP50 Blank Dia 75-150 69.85 75 150 35 69.85
SKP50 A1128075250 SKP50 Blank Dia 75-250 69.85 75 250 35 69.85
SKP50 A1128100175 SKP50 Blank Dia 100-175 69.85 100 175 35 69.85
SKP50 A1128100300 SKP50 Blank Dia 100-300 69.85 100 300 35 69.85
SKP50 A1128120200 SKP50 Blank Dia 120-200 69.85 120 200 35 69.85
SKP50 A1128120300 SKP50 Blank Dia 120-300 69.85 120 300 35 69.85

BT Blanks (MAS 403)



FEATURES

Shank Harness 54-56 HRC

Shank Harness 28-32 HRC

Taper Shank ground to AT3 Accurecy (or better)

Catalog Number Description "D2" "L"
BT30 A110060200 BT30 Blank Dia. 60- 200 60 200
BT30 A110060120 BT30 Blank Dia. 60-120 60 120
BT40 A112063280 BT40 Blank Dia. 63-280 63 280
BT40 A112063200 BT40 BLANK 63-200 63 200
BT40 A112063120 BT40 BLANK 63-120 63 120
BT40 A112104200 BT40 BLANK 104-200 104 200

BTP Face Contact Blank Bars



FEATURES

Shank Harness 54-56 HRC

Shank Harness 28-32 HRC

Taper Shank ground to AT3 Accurecy (or better)

Catalog Number Description "D2" "D2"
BTP40 A1108063280 BTP40 BLANK 63-280 63 280
BTP40 A1108104200 BTP40 BLANK 104-200 104 200

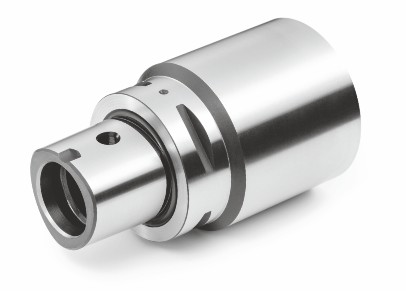

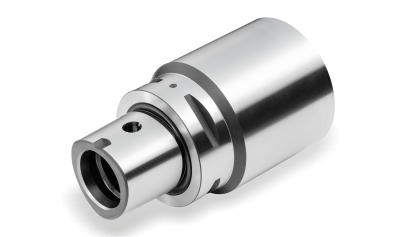

PSC Blanks (ISO 26623-1)



FEATURES

Shank Harness 54-56 HRC

Shank Harness 28-32 HRC

Catalog Number Description "D" "D1" "A" "A1"
PSC32 A166032090 PSC32 Blank Dia. 32-90 32 32 90 -
PSC32 A166060090 PSC32 Blank Dia. 60-90 32 60 90 75
PSC40 A167040120 PSC40 Blank Dia. 40-120 40 40 120 -
PSC40 A167050180 PSC40 Blank Dia. 50-180 40 50 180 160
PSC40 A167080120 PSC40 Blank Dia. 80-120 40 80 120 100
PSC40 A167090150 PSC40 Blank Dia. 90-150 40 90 150 130
PSC40 A167120120 PSC40 Blank Dia. 120-120 40 120 120 100
PSC50 A168050150 PSC50 Blank Dia. 50-150 50 50 150 -
PSC50 A168050200 PSC50 Blank Dia. 50-200 50 50 200 -
PSC50 A168063180 PSC50 Blank Dia. 63-180 50 63 180 160
PSC50 A168090180 PSC50 Blank Dia. 90-180 50 90 180 160
PSC50 A168095150 PSC50 Blank Dia. 95-150 50 95 150 130
PSC50 A168120200 PSC50 Blank Dia. 120-200 50 120 200 180
PSC50 A168150150 PSC50 Blank Dia. 150-150 50 150 150 130
PSC63 A169063180 PSC63 Blank Dia. 63-180 63 63 180 -
PSC63 A169070200 PSC63 Blank Dia. 70-200 63 70 200 178
PSC63 A169090200 PSC63 Blank Dia. 90-200 63 90 200 178
PSC63 A169110120 PSC63 Blank Dia. 110-120 63 110 120 98
PSC63 A169120150 PSC63 Blank Dia. 120-150 63 120 150 128
PSC63 A169120180 PSC63 Blank Dia. 120-180 63 120 180 158
PSC63 A169180120 PSC63 Blank Dia. 180-120 63 180 120 98
PSC63 A169220120 PSC63 Blank Dia. 220-120 63 220 120 98
PSC80 A170080200 PSC80 Blank Dia. 80-200 80 80 200 -
PSC80 A170090200 PSC80 Blank Dia. 90-200 80 90 200 170
PSC80 A170100200 PSC80 Blank Dia. 100-200 80 100 200 170
PSC80 A170110250 PSC80 Blank Dia. 110-250 80 110 250 220
PSC80 A170145200 PSC80 Blank Dia. 145-200 80 145 200 170
PSC80 A170150200 PSC80 Blank Dia. 150-200 80 150 200 170
PSC80 A170160120 PSC80 Blank Dia. 160-120 80 160 120 90
PSC80 A170180120 PSC80 Blank Dia. 180-120 80 180 120 90
PSC80X A157100100 PSC80x Blank Dia. 100-100 100 100 100 -
PSC80X A157100200 PSC80x Blank Dia. 100-200 100 100 200 -
PSC80X A157145200 PSC80x Blank Dia. 145-200 100 145 200 168
PSC80X A157150100 PSC80x Blank Dia. 150-100 100 150 100 68
PSC80X A157150200 PSC80x Blank Dia. 150-200 100 150 200 168
PSC80X A157160150 PSC80x Blank Dia. 160-150 100 160 150 118
PSC80X A157200100 PSC80x Blank Dia. 200-100 100 200 100 68
PSC80X A157100100 PSC80x Blank Dia. 100-100 100 100 100 -
PSC80X A157100200 PSC80x Blank Dia. 100-200 100 100 200 -

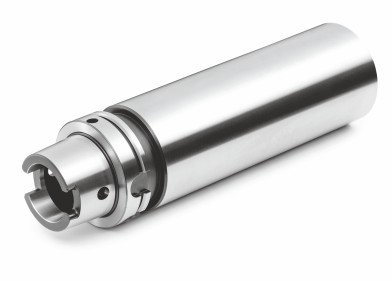

HSK Blanks (ISO 69893-1)



FEATURES

Shank Harness 54-56 HRC

Shank Harness 28-32 HRC

Catalog Number Description "D" "D1" "D2" "L" "L1" "L2"
HSK32A A171A032090 HSK32A BLANK DIA 32-90 32 32 26 90 35 55
HSK32A A171A060090 HSK32A BLANK DIA 60-90 32 60 26 90 35 55
HSK40A A172A040120 HSK40A BLANK DIA 40-120 40 40 34 120 35 85
HSK40A A172A040120 HSK40A BLANK DIA 80-120 40 80 34 120 35 85
HSK50A A173A050100 HSK50A BLANK DIA 50-100 50 50 42 100 42 108
HSK50A A173A050150 HSK50A BLANK DIA 95-150 50 95 42 150 42 108
HSK63A A174A063180 HSK63A BLANK DIA 63-180 63 63 53 180 42 138
HSK63A A174A120180 HSK63A BLANK DIA 120-180 63 120 53 180 42 138
HSK80A A175A080120 HSK80A BLANK DIA 80-120 80 80 68 120 42 158
HSK80A A175A145200 HSK80A BLANK DIA 145-200 80 145 68 200 42 158
HSK100A A179A145200 HSK100A BLANK DIA 145-200 100 145 88 200 45 155
