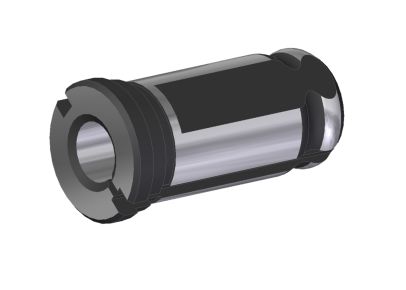

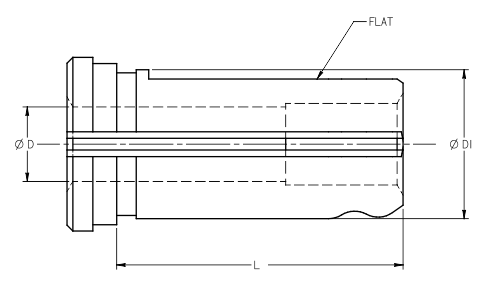

| Catelog Number | Description | D | D1 | "L" Length under Head |
|---|---|---|---|---|
| B20600 | Type B Bushing 20.0 OD x 6.0 ID | 6.00 | 20.00 | 38 |
| B20800 | Type B Bushing 20.0 OD x 8.0 ID | 8.00 | 20.00 | 38 |
| B20100 | Type B Bushing 20.0 OD x 10.0 ID | 10.00 | 20.00 | 38 |
| B20120 | Type B Bushing 20.0 OD x12.0 ID | 12.00 | 20.00 | 38 |
| B25600 | Type B Bushing 25.0 OD x 6.0 ID | 6.00 | 25.00 | 44 |
| B25800 | Type B Bushing 25.0 OD x 8.0 ID | 8.00 | 25.00 | 44 |
| B25100 | Type B Bushing 25.0 OD x 10.0 ID | 10.00 | 25.00 | 44 |
| B25120 | Type B Bushing 25.0 OD x 12.0 ID | 12.00 | 25.00 | 44 |
| B25150 | Type B Bushing 25.0 OD x 15.0 ID | 15.00 | 25.00 | 44 |
| B25200 | Type B Bushing 25.0 OD x 20.0 ID | 20.00 | 25.00 | 44 |
| B30100 | Type B Bushing 30.0 OD x 10.0 ID | 10.00 | 30.00 | 54 |
| B30120 | Type B Bushing 30.0 OD x 12.0ID | 12.00 | 30.00 | 54 |
| B30150 | Type B Bushing 30.0 OD x 15.0ID | 15.00 | 30.00 | 54 |
| B30200 | Type B Bushing 30.0 OD x 20.0ID | 20.00 | 30.00 | 54 |
| B30220 | Type B Bushing 30.0 OD x 22.0ID | 22.00 | 30.00 | 54 |
| B30250 | Type B Bushing 30.0 OD x 25.0ID | 25.00 | 30.00 | 54 |
| B40100 | Type B Bushing 40.0 OD x 10.0 ID | 10.00 | 40.00 | 64 |
| B40120 | Type B Bushing 40.0 OD x 12.0 ID | 12.00 | 40.00 | 64 |
| B40150 | Type B Bushing 40.0 OD x 15.0 ID | 15.00 | 40.00 | 64 |
| B40200 | Type B Bushing 40.0 OD x 20.0 ID | 20.00 | 40.00 | 64 |
| B40220 | Type B Bushing 40.0 OD x 22.0 ID | 22.00 | 40.00 | 64 |
| B40250 | Type B Bushing 40.0 OD x 25.0 ID | 25.00 | 40.00 | 64 |
| B40300 | Type B Bushing 40.0 OD x 30.0 ID | 30.00 | 40.00 | 64 |
| B45120 | Type B Bushing 45.0 OD x 12.0 ID | 12.00 | 45.00 | 76 |
| B45150 | Type B Bushing 45.0 OD x 15.0 ID | 15.00 | 45.00 | 76 |
| B45200 | Type B Bushing 45.0 OD x 20.0 ID | 20.00 | 45.00 | 76 |
| B45220 | Type B Bushing 45.0 OD x 22.0 ID | 22.00 | 45.00 | 76 |
| B45250 | Type B Bushing 45.0 OD x 25.0 ID | 25.00 | 45.00 | 76 |
| B45300 | Type B Bushing 45.0 OD x 30.0 ID | 30.00 | 45.00 | 76 |
| B45400 | Type B Bushing 45.0 OD x 40.0 ID | 40.00 | 45.00 | 76 |
| B50120 | Type B Bushing 50.0 OD x 12.0 ID | 12.00 | 50.00 | 89 |
| B50150 | Type B Bushing 50.0 OD x 15.0 ID | 15.00 | 50.00 | 89 |
| B50200 | Type B Bushing 50.0 OD x 20.0 ID | 20.00 | 50.00 | 89 |
| B50220 | Type B Bushing 50.0 OD x 22.0 ID | 22.00 | 50.00 | 89 |
| B50250 | Type B Bushing 50.0 OD x 25.0 ID | 25.00 | 50.00 | 89 |
| B50300 | Type B Bushing 50.0 OD x 30.0 ID | 30.00 | 50.00 | 89 |
| B50400 | Type B Bushing 50.0 OD x 40.0 ID | 40.00 | 50.00 | 89 |
| B50450 | Type B Bushing 50.0 OD x 45.0 ID | 45.00 | 50.00 | 89 |
| B60200 | Type B Bushing 60.0 O.D.X 20.0 ID | 20.00 | 60.00 | 102 |
| B60250 | Type B Bushing 60.0 O.D.X 25.0 ID | 25.00 | 60.00 | 102 |
| B60300 | Type B Bushing 60.0 O.D.X 30.0 ID | 30.00 | 60.00 | 102 |
| B60400 | Type B Bushing 60.0 O.D.X 40.0 ID | 40.00 | 60.00 | 102 |
| B60450 | Type B Bushing 60.0 O.D.X 45.0 ID | 45.00 | 60.00 | 102 |
| B60500 | Type B Bushing 60.0 O.D.X 50.0 ID | 50.00 | 60.00 | 102 |
| B60550 | Type B Bushing 60.0 O.D.X 55.0 ID | 55.00 | 60.00 | 102 |

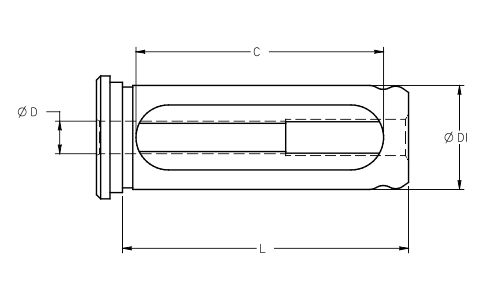

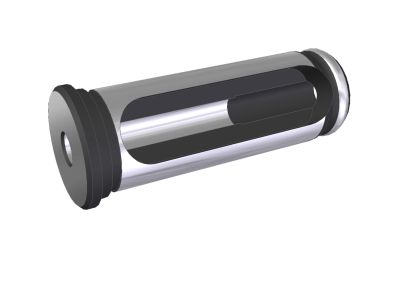

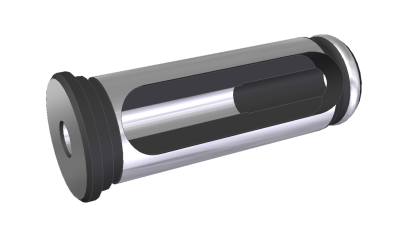

| Catelog Number | Description | D | D1 | "C" Slot Length | "L" Length under Head | No. Slots |
|---|---|---|---|---|---|---|
| C20600 | Type C Bushing 20.0 OD x 6.0 ID | 6.00 | 20.00 | 38 | 50.00 | 1 |
| C20800 | Type C Bushing 20.0 OD x 8.0 ID | 8.00 | 20.00 | 38 | 50.00 | 1 |
| C20100 | Type C Bushing 20.0 OD x 10.0 ID | 10.00 | 20.00 | 38 | 50.00 | 1 |
| C20120 | Type C Bushing 20.0 OD x12.0 ID | 12.00 | 20.00 | 38 | 50.00 | 1 |
| C25600 | Type C Bushing 25.0 OD x 6.0 ID | 6.00 | 25.00 | 60 | 70.00 | 1 |
| C25800 | Type C Bushing 25.0 OD x 8.0 ID | 8.00 | 25.00 | 60 | 70.00 | 1 |
| C25100 | Type C Bushing 25.0 OD x 10.0 ID | 10.00 | 25.00 | 60 | 70.00 | 1 |
| C25120 | Type C Bushing 25.0 OD x 12.0 ID | 12.00 | 25.00 | 60 | 70.00 | 1 |
| C25150 | Type C Bushing 25.0 OD x 15.0 ID | 15.00 | 25.00 | 60 | 70.00 | 1 |
| C25200 | Type C Bushing 25.0 OD x 20.0 ID | 20.00 | 25.00 | 60 | 70.00 | 1 |
| C30100 | Type C Bushing 30.0 OD x 10.0 ID | 10.00 | 30.00 | 70 | 85.00 | 1 |
| C30120 | Type C Bushing 30.0 OD x 12.0ID | 12.00 | 30.00 | 70 | 85.00 | 1 |
| C30150 | Type C Bushing 30.0 OD x 15.0ID | 15.00 | 30.00 | 70 | 85.00 | 1 |
| C30200 | Type C Bushing 30.0 OD x 20.0ID | 20.00 | 30.00 | 70 | 85.00 | 1 |
| C30220 | Type C Bushing 30.0 OD x 22.0ID | 22.00 | 30.00 | 70 | 85.00 | 1 |
| C30250 | Type C Bushing 30.0 OD x 25.0ID | 25.00 | 30.00 | 70 | 85.00 | 1 |
| C40100 | Type C Bushing 40.0 OD x 10.0 ID | 10.00 | 40.00 | 76 | 86.00 | 1 |
| C40120 | Type C Bushing 40.0 OD x 12.0 ID | 12.00 | 40.00 | 76 | 86.00 | 1 |
| C40150 | Type C Bushing 40.0 OD x 15.0 ID | 15.00 | 40.00 | 76 | 86.00 | 1 |
| C40200 | Type C Bushing 40.0 OD x 20.0 ID | 20.00 | 40.00 | 76 | 86.00 | 1 |
| C40220 | Type C Bushing 40.0 OD x 22.0 ID | 22.00 | 40.00 | 76 | 86.00 | 1 |
| C40250 | Type C Bushing 40.0 OD x 25.0 ID | 25.00 | 40.00 | 76 | 86.00 | 1 |
| C40300 | Type C Bushing 40.0 OD x 30.0 ID | 30.00 | 40.00 | 76 | 86.00 | 1 |
| C45120 | Type C Bushing 45.0 OD x 12.0 ID | 12.00 | 45.00 | 79 | 90.00 | 1 |
| C45150 | Type C Bushing 45.0 OD x 15.0 ID | 15.00 | 45.00 | 79 | 90.00 | 1 |
| C45200 | Type C Bushing 45.0 OD x 20.0 ID | 20.00 | 45.00 | 79 | 90.00 | 1 |
| C45220 | Type C Bushing 45.0 OD x 22.0 ID | 22.00 | 45.00 | 79 | 90.00 | 1 |
| C45250 | Type C Bushing 45.0 OD x 25.0 ID | 25.00 | 45.00 | 79 | 90.00 | 1 |
| C45300 | Type C Bushing 45.0 OD x 30.0 ID | 30.00 | 45.00 | 79 | 90.00 | 1 |
| C45400 | Type C Bushing 45.0 OD x 40.0 ID | 40.00 | 45.00 | 79 | 90.00 | 1 |
| C50120 | Type C Bushing 50.0 OD x 12.0 ID | 12.00 | 50.00 | 92 | 105.00 | 1 |
| C50150 | Type C Bushing 50.0 OD x 15.0 ID | 15.00 | 50.00 | 92 | 105.00 | 1 |
| C50200 | Type C Bushing 50.0 OD x 20.0 ID | 20.00 | 50.00 | 92 | 105.00 | 1 |
| C50220 | Type C Bushing 50.0 OD x 22.0 ID | 22.00 | 50.00 | 92 | 105.00 | 1 |
| C50250 | Type C Bushing 50.0 OD x 25.0 ID | 25.00 | 50.00 | 92 | 105.00 | 1 |
| C50300 | Type C Bushing 50.0 OD x 30.0 ID | 30.00 | 50.00 | 92 | 105.00 | 1 |
| C50400 | Type C Bushing 50.0 OD x 40.0 ID | 40.00 | 50.00 | 92 | 105.00 | 1 |
| C50450 | Type C Bushing 50.0 OD x 45.0 ID | 45.00 | 50.00 | 92 | 105.00 | 1 |
| C60200 | Type C Bushing 60.0 O.D.X 20.0 ID | 20.00 | 60.00 | 105 | 115.00 | 1 |
| C60250 | Type C Bushing 60.0 O.D.X 25.0 ID | 25.00 | 60.00 | 105 | 115.00 | 1 |
| C60300 | Type C Bushing 60.0 O.D.X 30.0 ID | 30.00 | 60.00 | 105 | 115.00 | 1 |
| C60400 | Type C Bushing 60.0 O.D.X 40.0 ID | 40.00 | 60.00 | 105 | 115.00 | 1 |
| C60450 | Type C Bushing 60.0 O.D.X 45.0 ID | 45.00 | 60.00 | 105 | 115.00 | 1 |
| C60500 | Type C Bushing 60.0 O.D.X 50.0 ID | 50.00 | 60.00 | 105 | 115.00 | 1 |
| C60550 | Type C Bushing 60.0 O.D.X 55.0 ID | 55.00 | 60.00 | 105 | 115.00 | 1 |

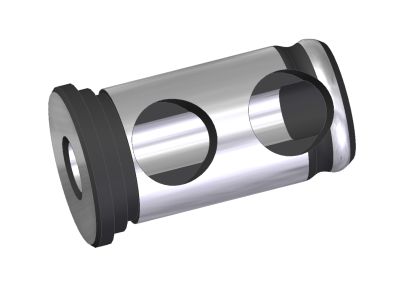

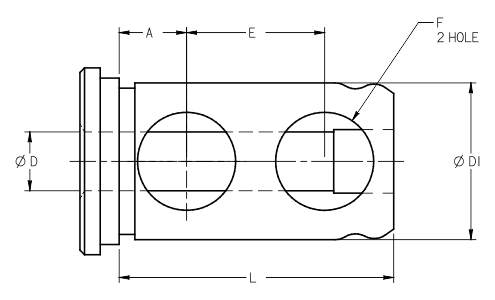

| Catelog Number | Description | D | D1 | "L" Length under head | "A" Length | "E" Length | Hole "F" |
|---|---|---|---|---|---|---|---|
| J20600 | Type J Bushing 20.0 OD x 6.0 ID | 6.00 | 20.00 | 40.00 | 10.000 | 21.000 | 9.000 |
| J20800 | Type J Bushing 20.0 OD x 8.0 ID | 8.00 | 20.00 | 40.00 | 10.000 | 21.000 | 9.000 |
| J20100 | Type J Bushing 20.0 OD x 10.0 ID | 10.00 | 20.00 | 40.00 | 10.000 | 21.000 | 9.000 |
| J20120 | Type J Bushing 20.0 OD x12.0 ID | 12.00 | 20.00 | 40.00 | 10.000 | 21.000 | 9.000 |
| J25600 | Type J Bushing 25.0 OD x 6.0 ID | 6.00 | 25.00 | 45.00 | 11.000 | 22.000 | 16.000 |
| J25800 | Type J Bushing 25.0 OD x 8.0 ID | 8.00 | 25.00 | 45.00 | 11.000 | 22.000 | 16.000 |
| J25100 | Type J Bushing 25.0 OD x 10.0 ID | 10.00 | 25.00 | 45.00 | 11.000 | 22.000 | 16.000 |
| J25120 | Type J Bushing 25.0 OD x 12.0 ID | 12.00 | 25.00 | 45.00 | 11.000 | 22.000 | 16.000 |
| J25150 | Type J Bushing 25.0 OD x 15.0 ID | 15.00 | 25.00 | 45.00 | 11.000 | 22.000 | 16.000 |
| J25200 | Type J Bushing 25.0 OD x 20.0 ID | 20.00 | 25.00 | 45.00 | 11.000 | 22.000 | 16.000 |
| J30100 | Type J Bushing 30.0 OD x 10.0 ID | 10.00 | 30.00 | 55.00 | 16.000 | 25.000 | 19.000 |
| J30120 | Type J Bushing 30.0 OD x 12.0ID | 12.00 | 30.00 | 55.00 | 16.000 | 25.000 | 19.000 |
| J30150 | Type J Bushing 30.0 OD x 15.0ID | 15.00 | 30.00 | 55.00 | 16.000 | 25.000 | 19.000 |
| J30200 | Type J Bushing 30.0 OD x 20.0ID | 20.00 | 30.00 | 55.00 | 16.000 | 25.000 | 19.000 |
| J30220 | Type J Bushing 30.0 OD x 22.0ID | 22.00 | 30.00 | 55.00 | 16.000 | 25.000 | 19.000 |
| J30250 | Type J Bushing 30.0 OD x 25.0ID | 25.00 | 30.00 | 55.00 | 16.000 | 25.000 | 19.000 |
| J40100 | Type J Bushing 40.0 OD x 10.0 ID | 10.00 | 40.00 | 65.00 | 17.000 | 29.000 | 22.000 |
| J40120 | Type J Bushing 40.0 OD x 12.0 ID | 12.00 | 40.00 | 65.00 | 17.000 | 29.000 | 22.000 |
| J40150 | Type J Bushing 40.0 OD x 15.0 ID | 15.00 | 40.00 | 65.00 | 17.000 | 29.000 | 22.000 |
| J40200 | Type J Bushing 40.0 OD x 20.0 ID | 20.00 | 40.00 | 65.00 | 17.000 | 29.000 | 22.000 |
| J40220 | Type J Bushing 40.0 OD x 22.0 ID | 22.00 | 40.00 | 65.00 | 17.000 | 29.000 | 22.000 |
| J40250 | Type J Bushing 40.0 OD x 25.0 ID | 25.00 | 40.00 | 65.00 | 17.000 | 29.000 | 22.000 |
| J40300 | Type J Bushing 40.0 OD x 30.0 ID | 30.00 | 40.00 | 65.00 | 17.000 | 29.000 | 22.000 |
| J45120 | Type J Bushing 45.0 OD x 12.0 ID | 12.00 | 45.00 | 80.00 | 19.000 | 32.000 | 22.000 |
| J45150 | Type J Bushing 45.0 OD x 15.0 ID | 15.00 | 45.00 | 80.00 | 19.000 | 32.000 | 22.000 |
| J45200 | Type J Bushing 45.0 OD x 20.0 ID | 20.00 | 45.00 | 80.00 | 19.000 | 32.000 | 22.000 |
| J45220 | Type J Bushing 45.0 OD x 22.0 ID | 22.00 | 45.00 | 80.00 | 19.000 | 32.000 | 22.000 |
| J45250 | Type J Bushing 45.0 OD x 25.0 ID | 25.00 | 45.00 | 80.00 | 19.000 | 32.000 | 22.000 |
| J45300 | Type J Bushing 45.0 OD x 30.0 ID | 30.00 | 45.00 | 80.00 | 19.000 | 32.000 | 22.000 |
| J45400 | Type J Bushing 45.0 OD x 40.0 ID | 40.00 | 45.00 | 80.00 | 19.000 | 32.000 | 22.000 |
| J50120 | Type J Bushing 50.0 OD x 12.0 ID | 12.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J50150 | Type J Bushing 50.0 OD x 15.0 ID | 15.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J50200 | Type J Bushing 50.0 OD x 20.0 ID | 20.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J50220 | Type J Bushing 50.0 OD x 22.0 ID | 22.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J50250 | Type J Bushing 50.0 OD x 25.0 ID | 25.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J50300 | Type J Bushing 50.0 OD x 30.0 ID | 30.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J50400 | Type J Bushing 50.0 OD x 40.0 ID | 40.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J50450 | Type J Bushing 50.0 OD x 45.0 ID | 45.00 | 50.00 | 90.00 | 19.000 | 39.000 | 25.000 |
| J60200 | Type J Bushing 60.0 O.D.X 20.0 ID | 20.00 | 60.00 | 110.00 | 22.000 | 44.000 | 32.000 |
| J60250 | Type J Bushing 60.0 O.D.X 25.0 ID | 25.00 | 60.00 | 110.00 | 22.000 | 44.000 | 32.000 |
| J60300 | Type J Bushing 60.0 O.D.X 30.0 ID | 30.00 | 60.00 | 110.00 | 22.000 | 44.000 | 32.000 |
| J60400 | Type J Bushing 60.0 O.D.X 40.0 ID | 40.00 | 60.00 | 110.00 | 22.000 | 44.000 | 32.000 |
| J60450 | Type J Bushing 60.0 O.D.X 45.0 ID | 45.00 | 60.00 | 110.00 | 22.000 | 44.000 | 32.000 |
| J60500 | Type J Bushing 60.0 O.D.X 50.0 ID | 50.00 | 60.00 | 110.00 | 22.000 | 44.000 | 32.000 |
| J60550 | Type J Bushing 60.0 O.D.X 55.0 ID | 55.00 | 60.00 | 110.00 | 22.000 | 44.000 | 32.000 |

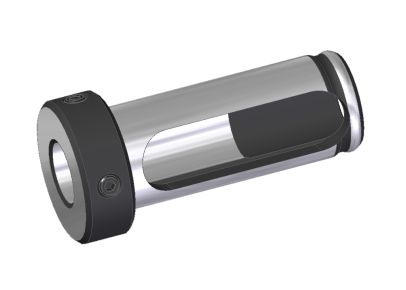

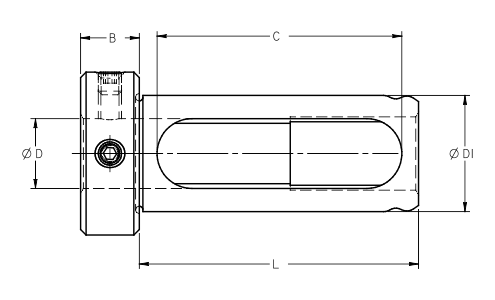

| Catelog Number | Description | D | D1 | "C" Slot Length | "B" Head Thickness | "L" Length under Head |
|---|---|---|---|---|---|---|
| Z20600 | Type Z Bushing 20.0 OD x 6.0 ID | 6.00 | 20.00 | 60 | 13 | 64 |
| Z20800 | Type Z Bushing 20.0 OD x 8.0 ID | 8.00 | 20.00 | 60 | 13 | 64 |
| Z20100 | Type Z Bushing 20.0 OD x 10.0 ID | 10.00 | 20.00 | 60 | 13 | 64 |
| Z20120 | Type Z Bushing 20.0 OD x12.0 ID | 12.00 | 20.00 | 60 | 13 | 64 |
| Z25600 | Type Z Bushing 25.0 OD x 6.0 ID | 6.00 | 25.00 | 60 | 13 | 70 |
| Z25800 | Type Z Bushing 25.0 OD x 8.0 ID | 8.00 | 25.00 | 60 | 13 | 70 |
| Z25100 | Type Z Bushing 25.0 OD x 10.0 ID | 10.00 | 25.00 | 60 | 13 | 70 |
| Z25120 | Type Z Bushing 25.0 OD x 12.0 ID | 12.00 | 25.00 | 60 | 13 | 70 |
| Z25150 | Type Z Bushing 25.0 OD x 15.0 ID | 15.00 | 25.00 | 60 | 13 | 70 |
| Z25200 | Type Z Bushing 25.0 OD x 20.0 ID | 20.00 | 25.00 | 60 | 13 | 70 |
| Z30100 | Type Z Bushing 30.0 OD x 10.0 ID | 10.00 | 30.00 | 67 | 16 | 76 |
| Z30120 | Type Z Bushing 30.0 OD x 12.0ID | 12.00 | 30.00 | 67 | 16 | 76 |
| Z30150 | Type Z Bushing 30.0 OD x 15.0ID | 15.00 | 30.00 | 67 | 16 | 76 |
| Z30200 | Type Z Bushing 30.0 OD x 20.0ID | 20.00 | 30.00 | 67 | 16 | 76 |
| Z30220 | Type Z Bushing 30.0 OD x 22.0ID | 22.00 | 30.00 | 67 | 16 | 76 |
| Z30250 | Type Z Bushing 30.0 OD x 25.0ID | 25.00 | 30.00 | 67 | 16 | 76 |
| Z40100 | Type Z Bushing 40.0 OD x 10.0 ID | 10.00 | 40.00 | 73 | 19 | 83 |
| Z40120 | Type Z Bushing 40.0 OD x 12.0 ID | 12.00 | 40.00 | 73 | 19 | 83 |
| Z40150 | Type Z Bushing 40.0 OD x 15.0 ID | 15.00 | 40.00 | 73 | 19 | 83 |
| Z40200 | Type Z Bushing 40.0 OD x 20.0 ID | 20.00 | 40.00 | 73 | 19 | 83 |
| Z40220 | Type Z Bushing 40.0 OD x 22.0 ID | 22.00 | 40.00 | 73 | 19 | 83 |
| Z40250 | Type Z Bushing 40.0 OD x 25.0 ID | 25.00 | 40.00 | 73 | 19 | 83 |
| Z40300 | Type Z Bushing 40.0 OD x 30.0 ID | 30.00 | 40.00 | 73 | 19 | 83 |
| Z45120 | Type Z Bushing 45.0 OD x 12.0 ID | 12.00 | 45.00 | 79 | 19 | 89 |
| Z45150 | Type Z Bushing 45.0 OD x 15.0 ID | 15.00 | 45.00 | 79 | 19 | 89 |
| Z45200 | Type Z Bushing 45.0 OD x 20.0 ID | 20.00 | 45.00 | 79 | 19 | 89 |
| Z45220 | Type Z Bushing 45.0 OD x 22.0 ID | 22.00 | 45.00 | 79 | 19 | 89 |
| Z45250 | Type Z Bushing 45.0 OD x 25.0 ID | 25.00 | 45.00 | 79 | 19 | 89 |
| Z45300 | Type Z Bushing 45.0 OD x 30.0 ID | 30.00 | 45.00 | 79 | 19 | 89 |
| Z45400 | Type Z Bushing 45.0 OD x 40.0 ID | 40.00 | 45.00 | 79 | 19 | 89 |
| Z50120 | Type Z Bushing 50.0 OD x 12.0 ID | 12.00 | 50.00 | 86 | 19 | 95 |
| Z50150 | Type Z Bushing 50.0 OD x 15.0 ID | 15.00 | 50.00 | 86 | 19 | 95 |
| Z50200 | Type Z Bushing 50.0 OD x 20.0 ID | 20.00 | 50.00 | 86 | 19 | 95 |
| Z50220 | Type Z Bushing 50.0 OD x 22.0 ID | 22.00 | 50.00 | 86 | 19 | 95 |
| Z50250 | Type Z Bushing 50.0 OD x 25.0 ID | 25.00 | 50.00 | 86 | 19 | 95 |
| Z50300 | Type Z Bushing 50.0 OD x 30.0 ID | 30.00 | 50.00 | 86 | 19 | 95 |
| Z50400 | Type Z Bushing 50.0 OD x 40.0 ID | 40.00 | 50.00 | 86 | 19 | 95 |
| Z50450 | Type Z Bushing 50.0 OD x 45.0 ID | 45.00 | 50.00 | 86 | 19 | 95 |
| Z60200 | Type Z Bushing 60.0 O.D.X 20.0 ID | 20.00 | 60.00 | 98 | 25 | 108 |
| Z60250 | Type Z Bushing 60.0 O.D.X 25.0 ID | 25.00 | 60.00 | 98 | 25 | 108 |
| Z60300 | Type Z Bushing 60.0 O.D.X 30.0 ID | 30.00 | 60.00 | 98 | 25 | 108 |
| Z60400 | Type Z Bushing 60.0 O.D.X 40.0 ID | 40.00 | 60.00 | 98 | 25 | 108 |
| Z60450 | Type Z Bushing 60.0 O.D.X 45.0 ID | 45.00 | 60.00 | 98 | 25 | 108 |
| Z60500 | Type Z Bushing 60.0 O.D.X 50.0 ID | 50.00 | 60.00 | 98 | 25 | 108 |
| Z60550 | Type Z Bushing 60.0 O.D.X 55.0 ID | 55.00 | 60.00 | 98 | 25 | 108 |

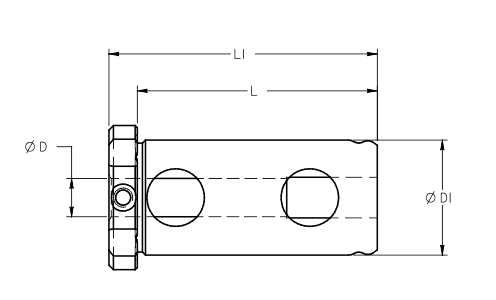

| Catelog Number | Description | D | D1 | "L" Length under Head | L1 |
|---|---|---|---|---|---|

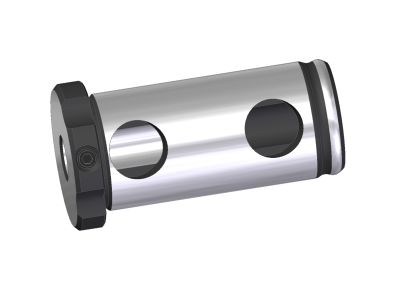

| LB40100 | Type LB Bushing 40.0 OD x 6.0 ID | 40.00 | 6.00 | 80 | 96 |
| LB40100 | Type LB Bushing 40.0 OD x 10.0 ID | 40.00 | 10.00 | 80 | 96 |
| LB40120 | Type LB Bushing 40.0 OD x 12.0 ID | 40.00 | 12.00 | 80 | 96 |
| LB40150 | Type LB Bushing 40.0 OD x 15.0 ID | 40.00 | 15.00 | 80 | 96 |
| LB40200 | Type LB Bushing 40.0 OD x 20.0 ID | 40.00 | 20.00 | 80 | 96 |
| LB40220 | Type LB Bushing 40.0 OD x 22.0 ID | 40.00 | 22.00 | 80 | 96 |
| LB40250 | Type LB Bushing 40.0 OD x 25.0 ID | 40.00 | 25.00 | 80 | 96 |
| LB40300 | Type LB Bushing 40.0 OD x 30.0 ID | 40.00 | 30.00 | 80 | 96 |
| Catelog Number | Description | D | D1 | "L" Length under Head | L1 |
|---|---|---|---|---|---|
| LBF40100 | Type LBF Bushing 40.0 OD x 6.0 ID | 40.00 | 6.00 | 80 | 96 |
| LBF40100 | Type LBF Bushing 40.0 OD x 10.0 ID | 40.00 | 10.00 | 80 | 96 |
| LBF40120 | Type LBF Bushing 40.0 OD x 12.0 ID | 40.00 | 12.00 | 80 | 96 |
| LBF40150 | Type LBF Bushing 40.0 OD x 15.0 ID | 40.00 | 15.00 | 80 | 96 |
| LBF40200 | Type LBF Bushing 40.0 OD x 20.0 ID | 40.00 | 20.00 | 80 | 96 |
| LBF40220 | Type LBF Bushing 40.0 OD x 22.0 ID | 40.00 | 22.00 | 80 | 96 |
| LBF40250 | Type LBF Bushing 40.0 OD x 25.0 ID | 40.00 | 25.00 | 80 | 96 |
| LBF40300 | Type LBF Bushing 40.0 OD x 30.0 ID | 40.00 | 30.00 | 80 | 96 |
