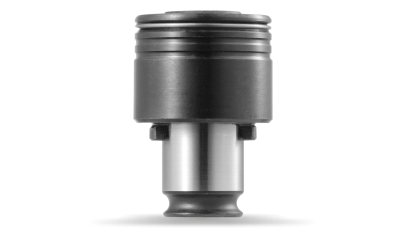

Tap Adapters QA Style – DIN Shank Taps
| Description |
Metric |
"D" |
"D1" |
"D2" |
"L1" |
"L3" |
"L4" |
"L5" |
| QA 0 |
M1-M10 |
22 |
13 |
13 |
15 |
4 |
19.5 |
7 |
| QA 1 |
M3-M12 |
30 |
19 |
19 |
17 |
4 |
21.5 |
7 |
| QA 2 |
M8-M20 |
48 |
30 |
30 |
30 |
5 |
35 |
11 |
| QA 3 |
M13-M33 |
70 |
48 |
48 |
44 |
6 |
55.5 |
14 |
| QA 4 |
M22-M48 |
92 |
60 |
60 |
71 |
13 |
63 |
42 |

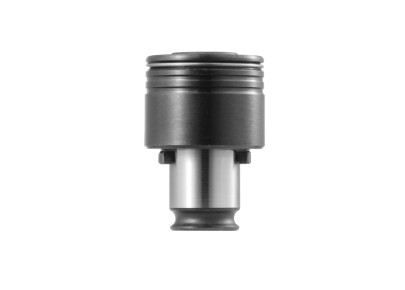

Tap Adapters QASB Style – Metric Shank Taps
| Description |
Metric |
"D" |
"D1" |
"D2" |
"L1" |
"L3" |
"L4" |
"L5" |
| QASB 0 |
M1-M10 |
23 |
13 |
13 |
15 |
20 |
19.5 |
21 |
| QASB 1 |
M3-M12 |
32 |
19 |
19 |
17 |
25 |
21.5 |
25 |
| QASB 2 |
M8-M20 |
50 |
30 |
30 |
30 |
31 |
35 |
34 |
| QASB 3 |
M13-M33 |
72 |
48 |
48 |
44 |
41 |
55.5 |
45 |
| QASB-4 |
M22-M48 |
95 |
60 |
60 |
71 |
61 |
63 |
68 |

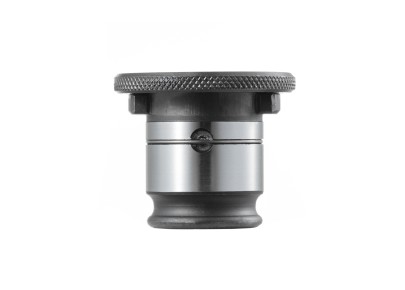

Tap Adapter QRE Style
| Catalog Number |
Description |
Adapter size |
"D" |
"D1" |
"D2" |
"L3" |
"L4" |
Suitable for
Chuck Size |
| 66100000 |
QRE 1/0 |
0 |
30 |
13 |
19 |
4 |
21.5 |
1 |
| 66200000 |
QRE 2/0 |
0 |
48 |
13 |
31 |
5 |
35 |
2 |
| 66200100 |
QRE 2/1 |
1 |
48 |
19 |
31 |
5 |
35 |
2 |
| 66300100 |
QRE 3/1 |
1 |
70 |
19 |
48 |
6 |
55.5 |
3 |
| 66300200 |
QRE 3/2 |
2 |
70 |
31 |
48 |
6 |
55.5 |
3 |
| 66400200 |
QRE 4/2 |
2 |
92 |
31 |
60 |
13 |
63 |
4 |
| 66400300 |
QRE 4/3 |
3 |
92 |
48 |
60 |
13 |
63 |
4 |
| 66500300 |
QRE 5/3 |
3 |
114 |
48 |
78 |
13 |
92 |
5 |
| 66500400 |
QRE 5/4 |
4 |
114 |
60 |
78 |
13 |
92 |
5 |
