• SPINDLE TEST MANDREL

HOME >> SPINDLE TEST MANDREL
  • SK
  • BT
  • HSK
  • PSC
  • SKP
  • BTP

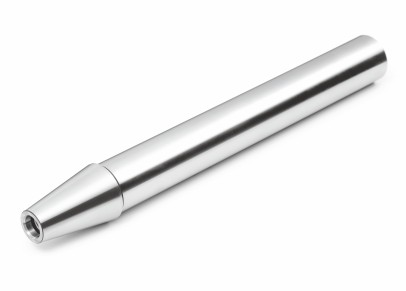

SK Spindle Test Mandrels (3 µm TIR)



Catalog Number Description D d L
SK40 A2194060 SK40 Test Mandrel Dia. 40-300 44.45 40 300
SK50 A2214070 SK50 Test Mandrel Dia. 40-350 69.85 40 350

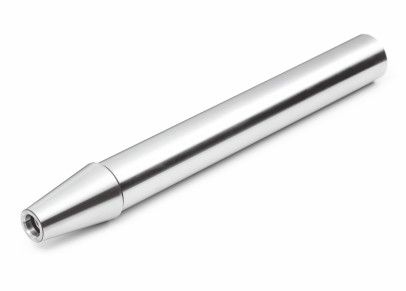

BT Spindle Test Mandrels (3 µm TIR)



Catalog Number Description D d L
BT30 A2102540 BT30 Test Mandrel Dia. 25-200 31.75 25 200
BT35 A2112540 BT35 Test Mandrel Dia. 25-200 38.1 25 200
BT40 A2124060 BT40 Test Mandrel Dia. 40-300 44.45 40 300
BT50 A2144070 BT50 Test Mandrel Dia. 40-350 69.85 40 350

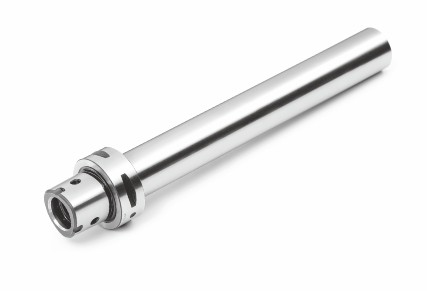

HSK Spindle Test Mandrels (3 µm TIR)



Catalog Number Description D d L
HSK32A A2713240 HSK32A Test Mandrel Dia. 32-200 32 32 200
HSK40A A2723240 HSK40A Test Mandrel Dia. 32-200 40 32 200
HSK50A A2734050 HSK50A Test Mandrel Dia. 40-250 50 40 250
HSK63A A2744070 HSK63A Test Mandrel Dia. 40-350 63 40 350
HSK80A A2754070 HSK80A Test Mandrel Dia. 40-350 80 40 350
HSK100A A2764076 HSK100A Test Mandrel Dia. 40-380 100 40 380
HSK125A A2775080 HSK125A Test Mandrel Dia. 50-400 125 50 400

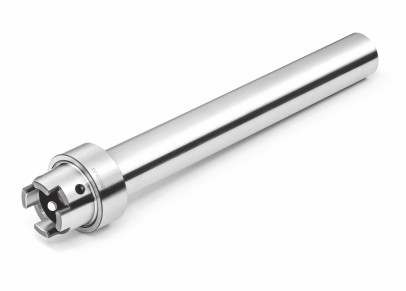

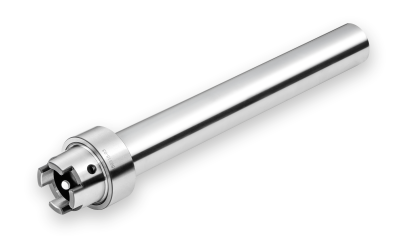

PSC Spindle Test Mandrels (3 µm TIR)



Catalog Number Description D d L
PSC32 A2662536 PSC32 Test Mandrel Dia. 25-180 32 25 180
PSC40 A2672536 PSC40 Test Mandrel Dia. 25-180 40 25 180
PSC50 A2683251 PSC50 Test Mandrel Dia. 32-255 50 32 255
PSC63 A2694065 PSC63 Test Mandrel Dia. 40-325 63 40 325
PSC80 A2704066 PSC80 Test Mandrel Dia. 40-330 80 40 330

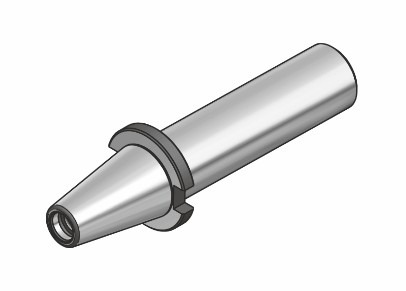

Steep Taper Face Contact Spindle Test Mandrels (3 µm TIR)



Catalog Number Description D d L
SKP40 A21264060 SKP40 Test Mandrel Dia. 40-300 63.5 40 300
SKP50 A21284070 SKP50 Test Mandrel Dia. 40-350 98.43 40 350

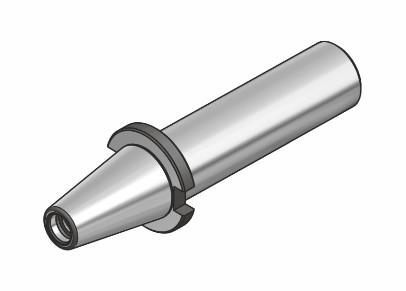

BTP Spindle Test Mandrels (3 µm TIR)



Catalog Number Description D d L
BTP30 A21062540 BTP30 Test Mandrel Dia. 25-200 46 25 200
BTP40 A21084060 BTP40 Test Mandrel Dia. 40-300 63 40 300
BTP50 A21104070 BTP50 Test Mandrel Dia. 40-350 100 40 350
