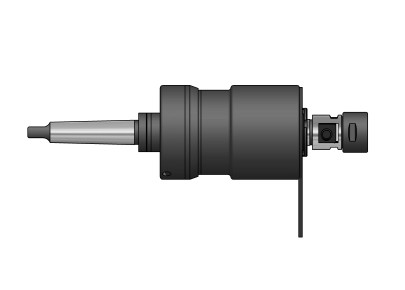

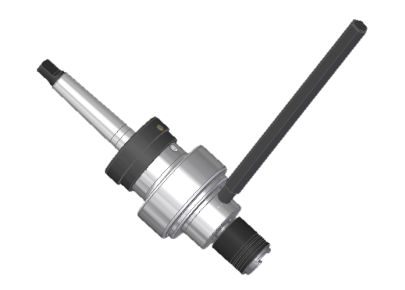

HOME >> REVERSIBLE TAPPING ATTACHMENT

MODEL - HR

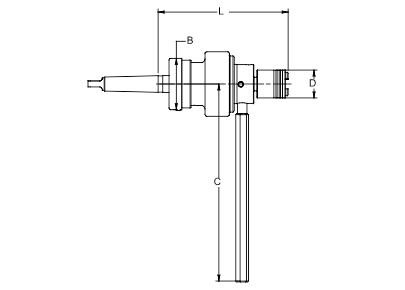

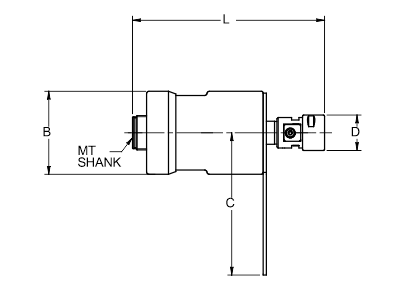

Catalog Number Description For Taps Size Standard Collet Optional Collet Shank Size L Ø B Ø D Ø C
61291217 HR1/ MT1 M1.4-M7 (1/16" - 1/4") S-161 (2.5 - 4.5 ) S-171 (4.5 - 6.5) S-151 (1 - 2.5) JT33 140 55 20 103
61301217 HR1/ MT2 M1.4-M7 (1/16" - 1/4") S-161 (2.5 - 4.5 ) S-171 (4.5 - 6.5) S-151 (1 - 2.5) JT33 150 55 20 103
61302268 HR2/ MT2 M3 –M12 (1/8” – ½”) S-212 (3.5 - 6.5) S-222 (6.5 - 10) S-232 (2 - 4.5) 5/8"-16 UN 200 68 29 127
61312268 HR2/ MT3 M3 –M12 (1/8” – ½”) S-212 (3.5 - 6.5) S-222 (6.5 - 10) S-232 (2 - 4.5) 5/8"-16 UN 220 68 29 127
613025268 HR2/ MT2 M3 –M12 (1/8” – ½”) S-212 (3.5 - 6.5) S-222 (6.5 - 10) S-232 (2 - 4.5) JT6 200 68 29 127
613125268 HR2/ MT3 M3 –M12 (1/8” – ½”) S-212 (3.5 - 6.5) S-222 (6.5 - 10) S-232 (2 - 4.5) JT6 220 68 29 127
61313327 HR3 MT3 M8 – M20 (5/16” – ¾”) S-413 (4.5 – 10) S-453 (10 – 16) S-433 (2.8 – 7) M20 P2.5 230 83 37.9 167
61323327 HR3 MT4 M8 – M20 (5/16” – ¾”) S-413 (4.5 – 10) S-453 (10 – 16) S-433 (2.8 – 7) M20 P2.5 240 83 37.9 167
61324433 HR4 MT4 M14 – M30 (9/16” – 1-1/8”) S-613 (9 – 16) S-623 (16 – 23) --- M20 P2.5 265 110 51.5 268
61334433 HR4 MT5 M14 – M30 (9/16” – 1-1/8”) S-613 (9 – 16) S-623 (16 – 23) --- M20 P2.5 280 110 51.5 268

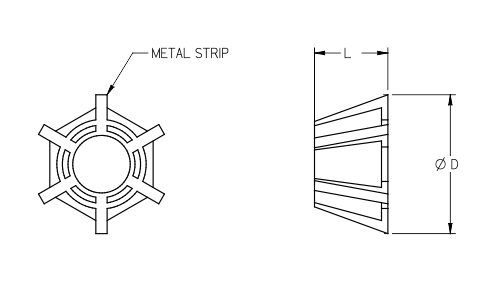

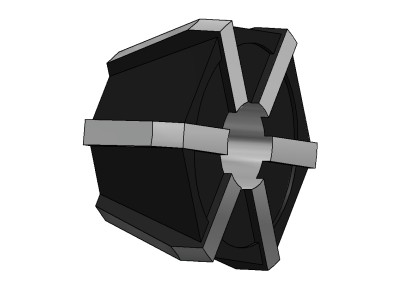

RUBBER COLLETS



Model D L Model For Tape
S-151 15 12 HR1 1.0 – 2.5
S-161 15 12 HR1 2.5 - 4.5
S-171 15 12 HR1 4.5 - 6.5
S-212 22.5 13 HR2 3.5 - 6.5
S-222 22.5 13 HR2 6.5 - 10
S-232 22.5 13 HR2 2.0 - 4.5
S-413 30.5 16 HR3 4.5 – 10.0
S-433 30.5 16 HR3 2.8 – 7.0
S-453 30.5 16 HR3 10.0-16.0
S-613 47 19 HR4 9.0 – 16.0
S-623 47 19 HR4 16.0 – 23.0

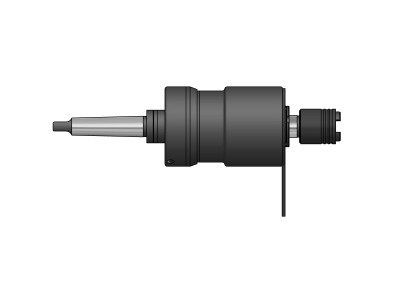

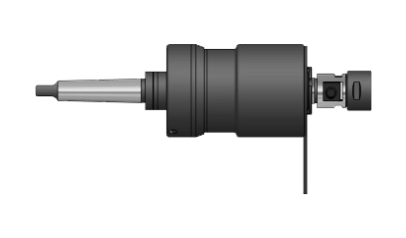

MODEL - HRF

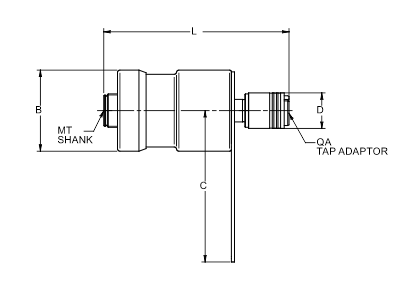

Catalog Number Description For Taps Size Standard TAP ADAPTOR Shank Size L Ø B Ø D Ø C
65291217 HRF1/ MT1 M1.4-M7 (1/16" - 1/4") QA-0 JT33 170 55 23 103
65301217 HRF1/ MT2 M1.4-M7 (1/16" - 1/4") QA-0 JT33 170 55 23 103
65302268 HRF2/ MT2 M3 –M12 (1/8” – ½”) QA-1 5/8"-16 UN 180 68 30 127
65312268 HRF2/ MT3 M3 –M12 (1/8” – ½”) QA-1 5/8"-16 UN 180 68 30 127
653025268 HRF2/ MT2 M3 –M12 (1/8” – ½”) QA-1 JT6 180 68 30 127
653125268 HRF2/ MT3 M3 –M12 (1/8” – ½”) QA-1 JT6 180 68 30 127
65313327 HRF3 MT3 M8 – M20 (5/16” – ¾”) QA-40 M20 P2.5 190 83 42 167
65323327 HRF3 MT4 M8 – M20 (5/16” – ¾”) QA-40 M20 P2.5 200 83 42 167
65324433 HRF4 MT4 M14 – M30 (9/16” – 1-1/8”) QA-3 M20 P2.5 220 110 72 268
65334433 HRF4 MT5 M14 – M30 (9/16” – 1-1/8”) QA-3 M20 P2.5 220 110 72 268

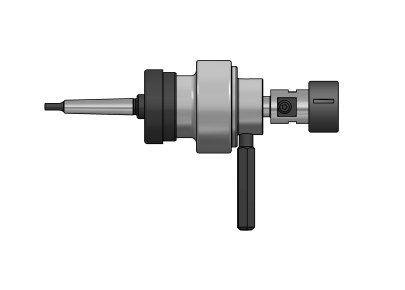

MODEL - TCN

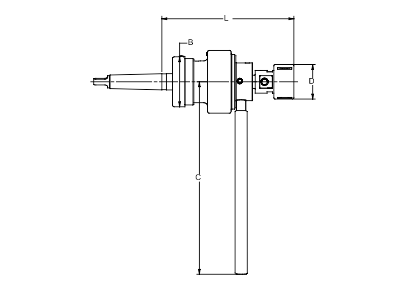

Catalog Number Description For Taps L Ø B Ø D ØC
87529155 TCN1/ MT1 M3-M7 (1/8" - 1/4") 150 55 38 213
87530155 TCN1/ MT2 M3-M10 (1/8" - 3/8") 155 55 38 213
87530268 TCN2/ MT2 M6-M16 (1/4"-5/8") 170 68 53 264
87531268 TCN2/ MT3 M6-M16 (1/4"-5/8") 175 68 53 264
87531368 TCN3/ MT3 M8 - M18 (5/16" - 3/4") 180 68 55 264
87531488 TCN4/ MT3 M10 - M18 (3/8" - 3/4") 205 88 62 319
87532488 TCN4/ MT4 M10 - M24 (3/8" - 1") 210 88 62 319
87532588 TCN5/ MT4 M14 - M30 (9/16" - 1 1/4") 240 88 75 319

MODEL - TCNF



Catalog Number Description For Taps SUITABLE TAP ADAPTOR L Ø B Ø C Ø D
87629155 TCNF1/ MT1 M3-M7 (1/8" - 1/4") QA-1 158 55 29 213
87630155 TCNF1/ MT2 M3-M10 (1/8" - 3/8") QA-1 165 55 29 213
87630268 TCNF2/ MT2 M6-M16 (1/4"-5/8") QA-40 165 68 42 264
87631268 TCNF2/ MT3 M6-M16 (1/4"-5/8") QA-40 170 68 42 264
87631368 TCNF3/ MT3 M8 - M18 (5/16" - 3/4") QA-40 170 68 42 264
87631488 TCNF4/ MT3 M10 - M18 (3/8" - 3/4") QA-3 255 96 72 319
87632488 TCNF4/ MT4 M10 - M24 (3/8" - 1") QA-3 260 96 72 319
87632588 TCNF5/ MT4 M14 - M30 (9/16" - 1 1/4") QA-3 270 96 72 319
